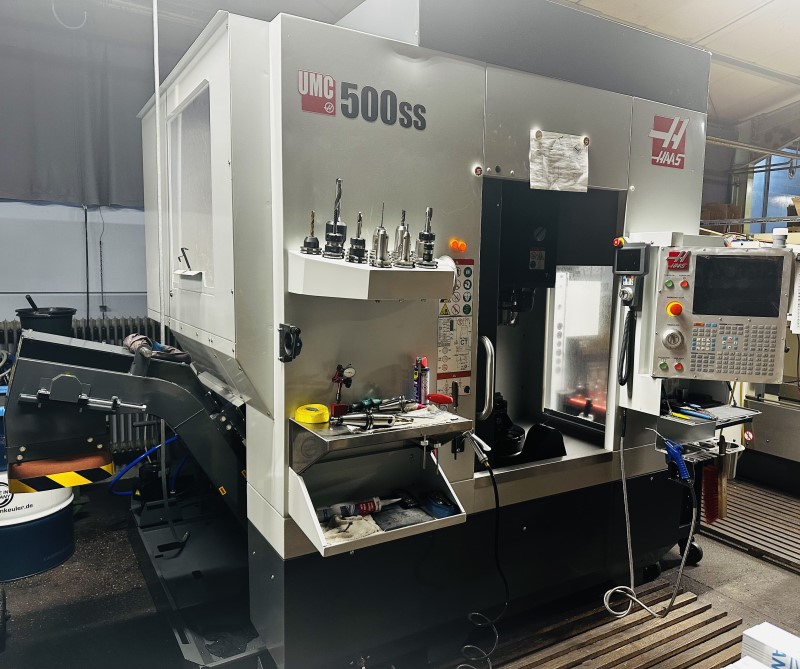

5-axis HAAS UMC 500 SS

Kategorija:

Vrsta oglasa:

prodam

Kratek opis:

This 5-axis HAAS UMC 500 SS was manufactured in 2023, offering advanced capabilities like 5-axis simultaneous machining and a SK 40 spindle at 12,000 RPM. It features a large touchscreen control panel, 30+1 tool positions, and coolant flow through the spindle. Ideal for complex and precise machining tasks, consider the opportunity to buy this HAAS UMC 500 SS universal machining centre.

Cena:

0.00€

Besedilo:

Overview

brand: HAAS
year: 2023
MODEL: UMC 500 SS
production hours: 212
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS UMC 500 SS

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 RPM 1/MIN
Tool taper: SK 40

Media

Chip conveyor: Yes

Additional Equipment

- Tool Positions: 30+1
- Automatic tool measurement (WIPS)
- Wireless, intuitive probe system
- Renishaw probe
- Cooling in the control cabinet / Coolant flow through the spindle (IKZ) / Programmable coolant nozzle at the spindle / Coolant filter system
- Chip conveyor with filter
- scope of delivery: only the machine, without tools/tool holders, etc,

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Condition: like new / very well-maintained
- - Machine travel: 610x406x508 mm
- - Large portable control panel with touchscreen display
- - 5-axis simultaneous machining
- - The scraper belt chip conveyor was replaced with a new filter chip conveyor in sept. 2024. Duration on: 1793h switch-on time: 1734h cycle start time: 540h feed time: 383hz
- - The scraper belt chip conveyor was replaced with a new filter chip conveyor in sept. 2024.
- - Duration on: 1793h / switch-on time: 1734h / cycle start time: 540h / feed time: 383h
