cnc cevni prebijalni stroj EDEL - STANZTECH PROFILTEC - 2030

Kategorija:

Obdelovalni stroji - kovina

Vrsta oglasa:

prodam

Kratek opis:

PRODAMO SPECIALNI CNC STROJ ZA PREBIJANJE CEVI DOLŽINE 3000 mm

Cena:

1.00€

Besedilo:

		PRODAMO CNC STROJ ZA PREBIJANJE CEVI DOLŽINE 3000 mm

		STROJ LAHKO PREBIJA SKOZI OBE STENI HKRATI

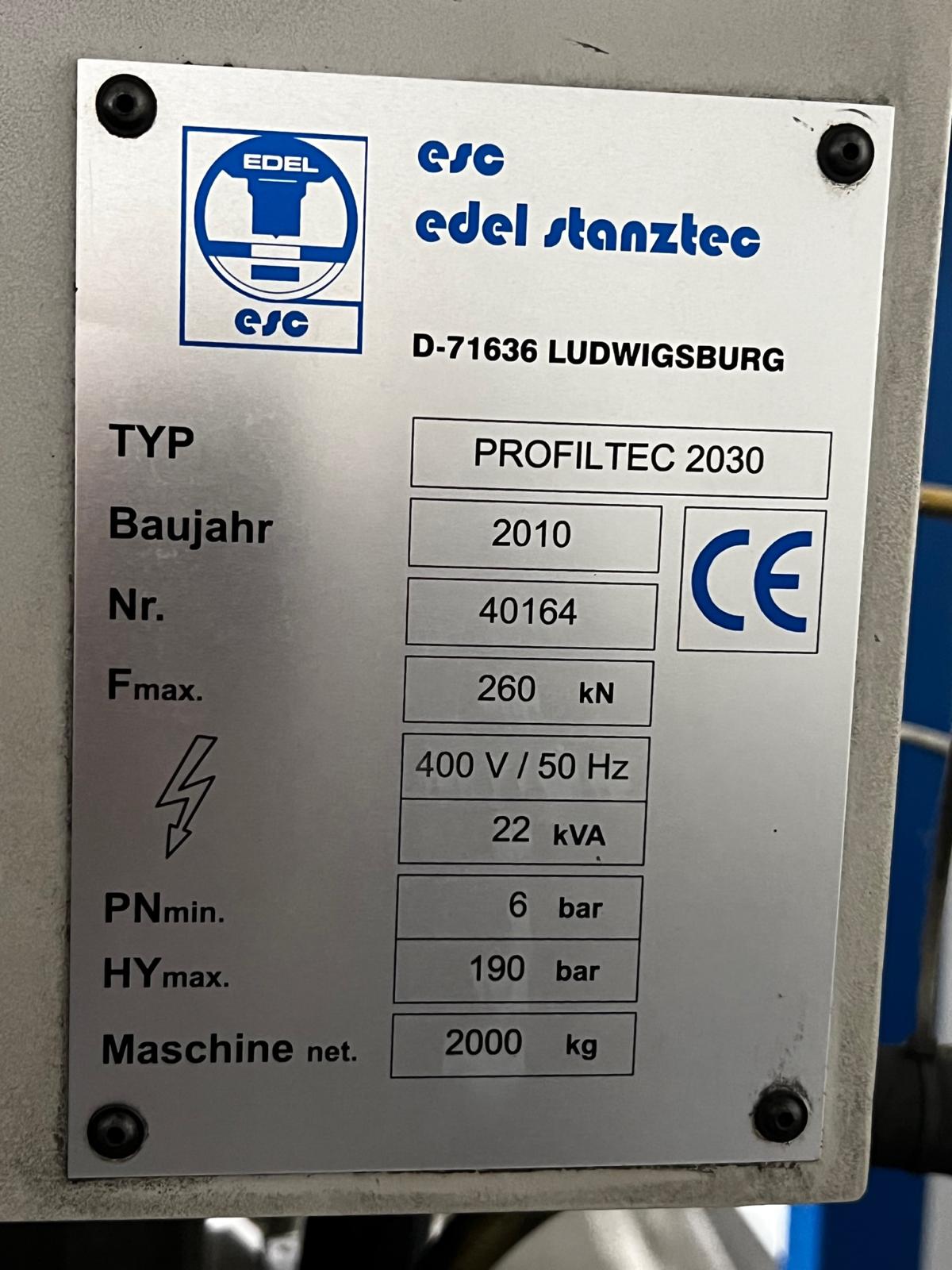

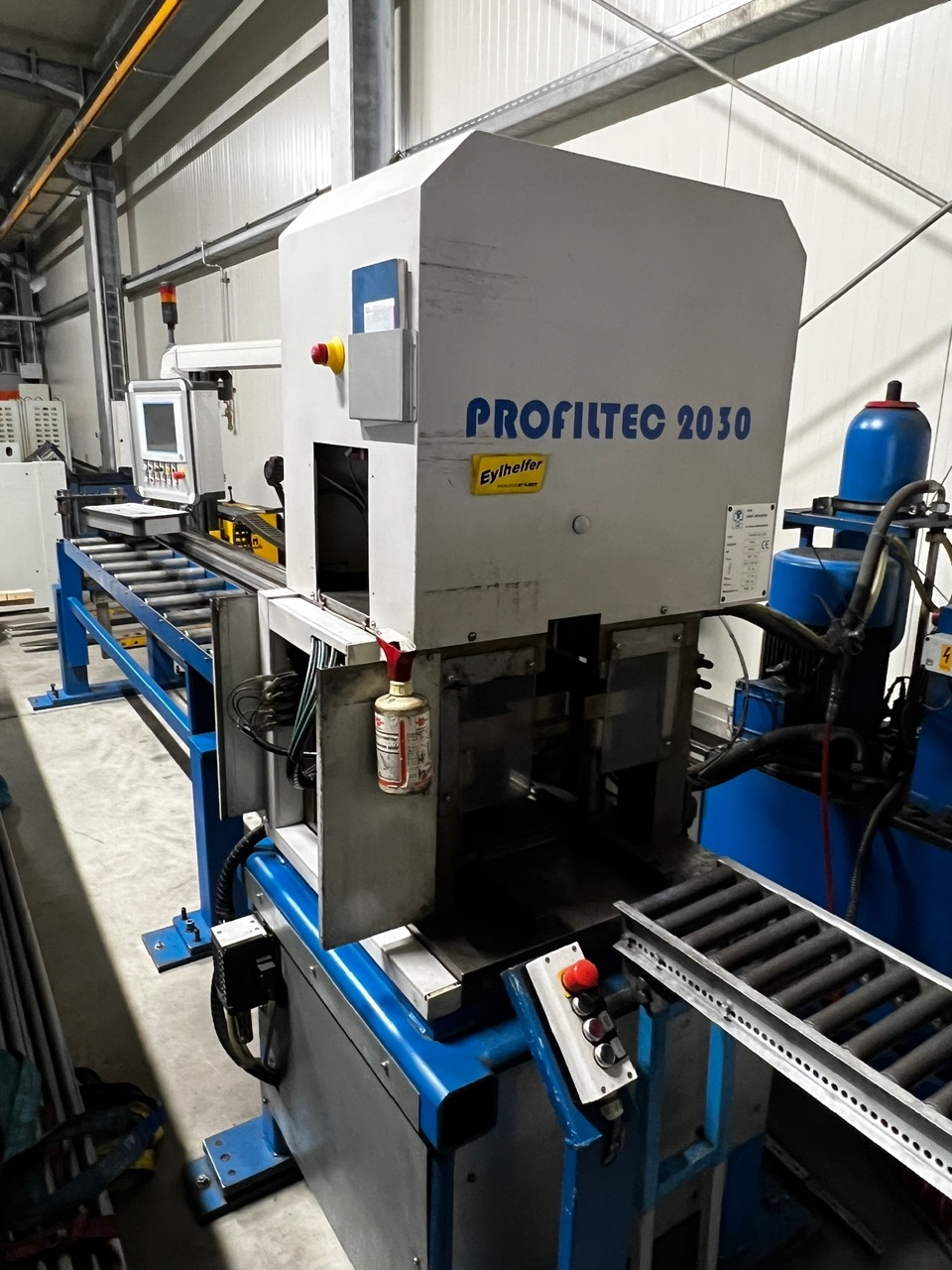

		EDEL - STANZTECH PROFILTEC - 2030

		WITH LOW HOURS - 9800 HOURS

		MACHINE RUN PER DAY 2 TO 3 HOURS ONLY

		MACHINE IS ECELLENT CONDITION

		LENGTH OF WORKING 3000mm tubes

		TECHNICAL DETAILS

		Riexinger control system: V1.0

		Punching force: 260kN

		Drive system: hydraulic

		Stroke sequences: max. 50 1/min

		Feed length: 3,000 mm

		Max. Lifting height: A-axis 60 mm

		Max. Positioning speed: X-direction programmable up to max. 64

		Smallest programmable linear axis travel: 0.1 mm

		MACHINE DETAILS

		Hydraulic operating pressure: 190 bar

		Nominal power of the pump motor: 15kW

		Pump capacity: 2 x 48 l/min

		Tank capacity of hydraulic unit: 200 l

		Connected load: kVA 22

		Operating pressure: min. 6 bar

		EQUIPMENT

		- Standard accessories

		- Hydraulic unit

		- Switch cabinet

		- Roller conveyor

		- Documentation

		MACHINE WEIGHT 2000 KG
