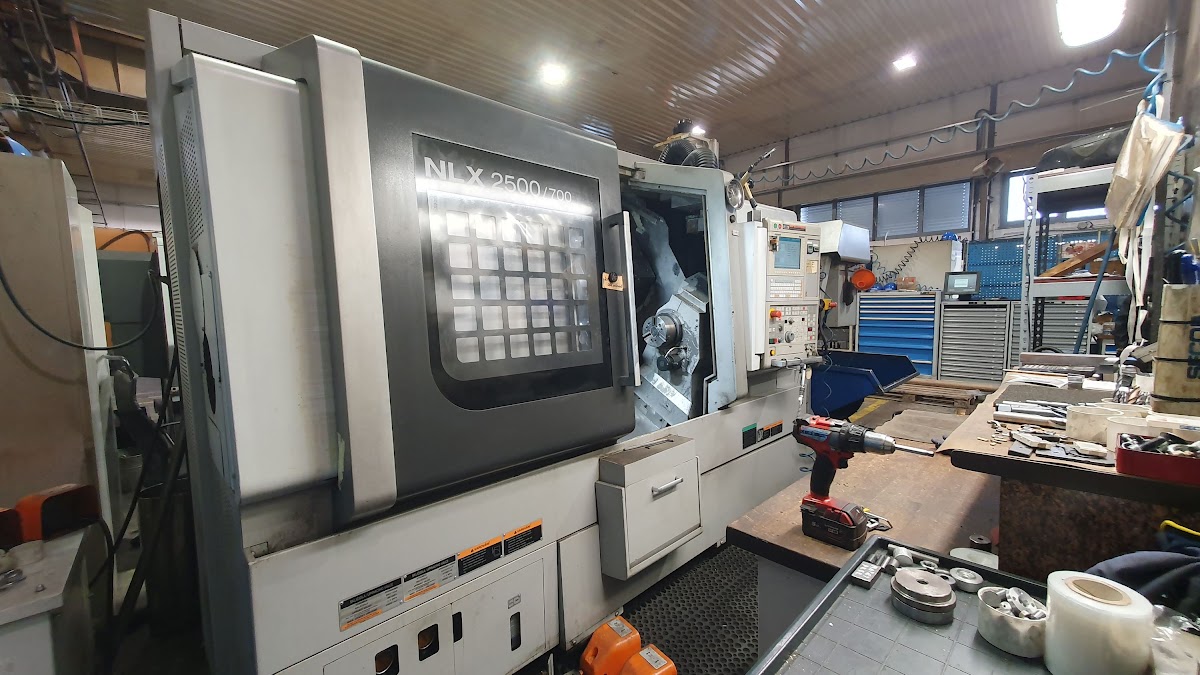

DMG MORI NLX 2500/700 SY CNC lathe

Year: 2014

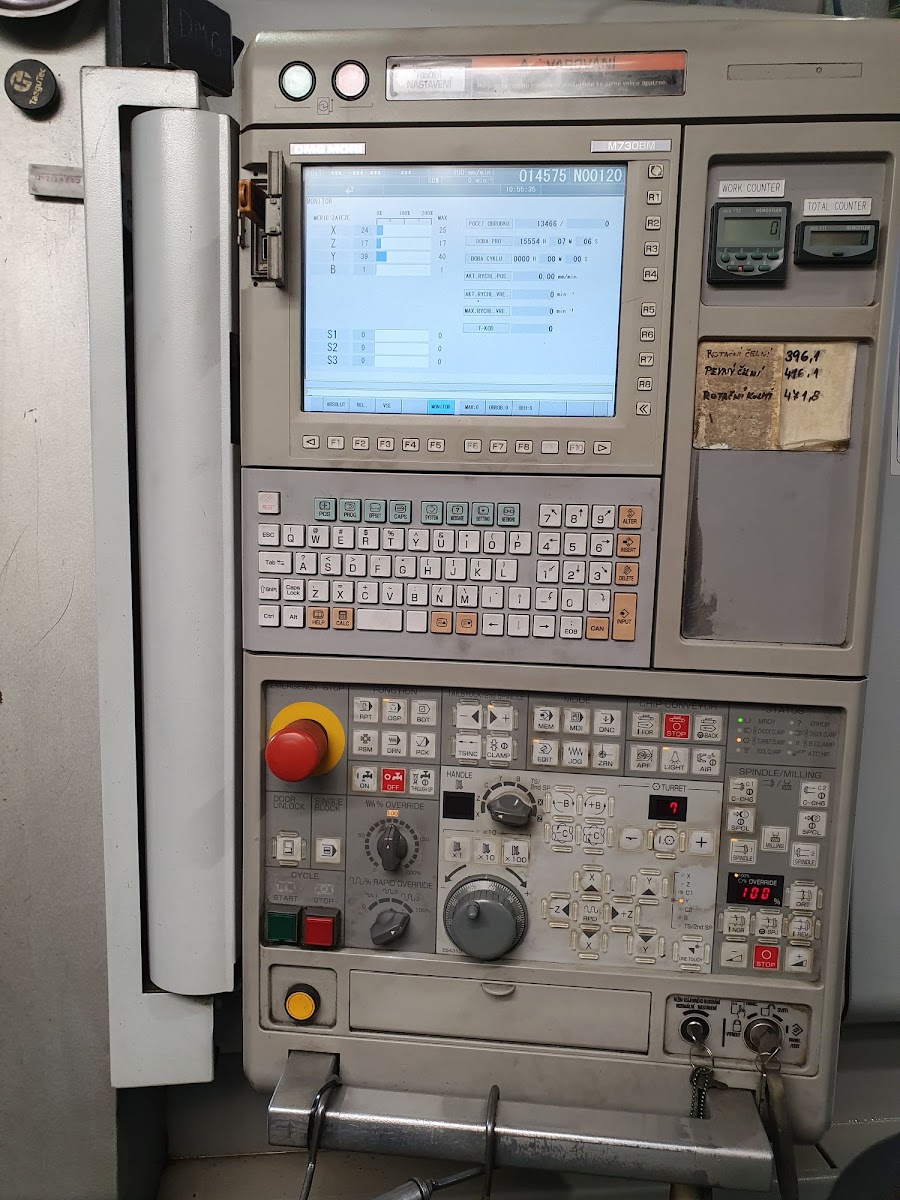

Control system MORI SEIKI M730BM

Turn table diameter 356 mm

Turning lenght 705 mm

Sloping bed YES

Y axis YES

Travel Y-axis (lathe) +/-50 mm

Counterspindle YES

Spindle bore 91 mm

Milling head NO

Driven Tools YES

Number of tool positions (driven) 12

Bar loader NO

Travel X-axis 260 mm

Travel Z-axis 795 mm

Spindle speed 0 - 6000 /min.

Swing over bed 920 mm

Swing over cross slide 742 mm

Max. bar diameter 80 mm

Axis C 0,001 °

X-axis rapid feed 30 m/min

Y-axis rapid feed 10 m/min

Z-axis rapid feed 30 m/min

Machine dimensions l x w x h 5000x3000x2300 mm

Machine weight 6360 kg

Tool magazine YES

Number of positions in magazine 12

The machine is in very good technical condition and can be tested.

B-axis: 734mm
