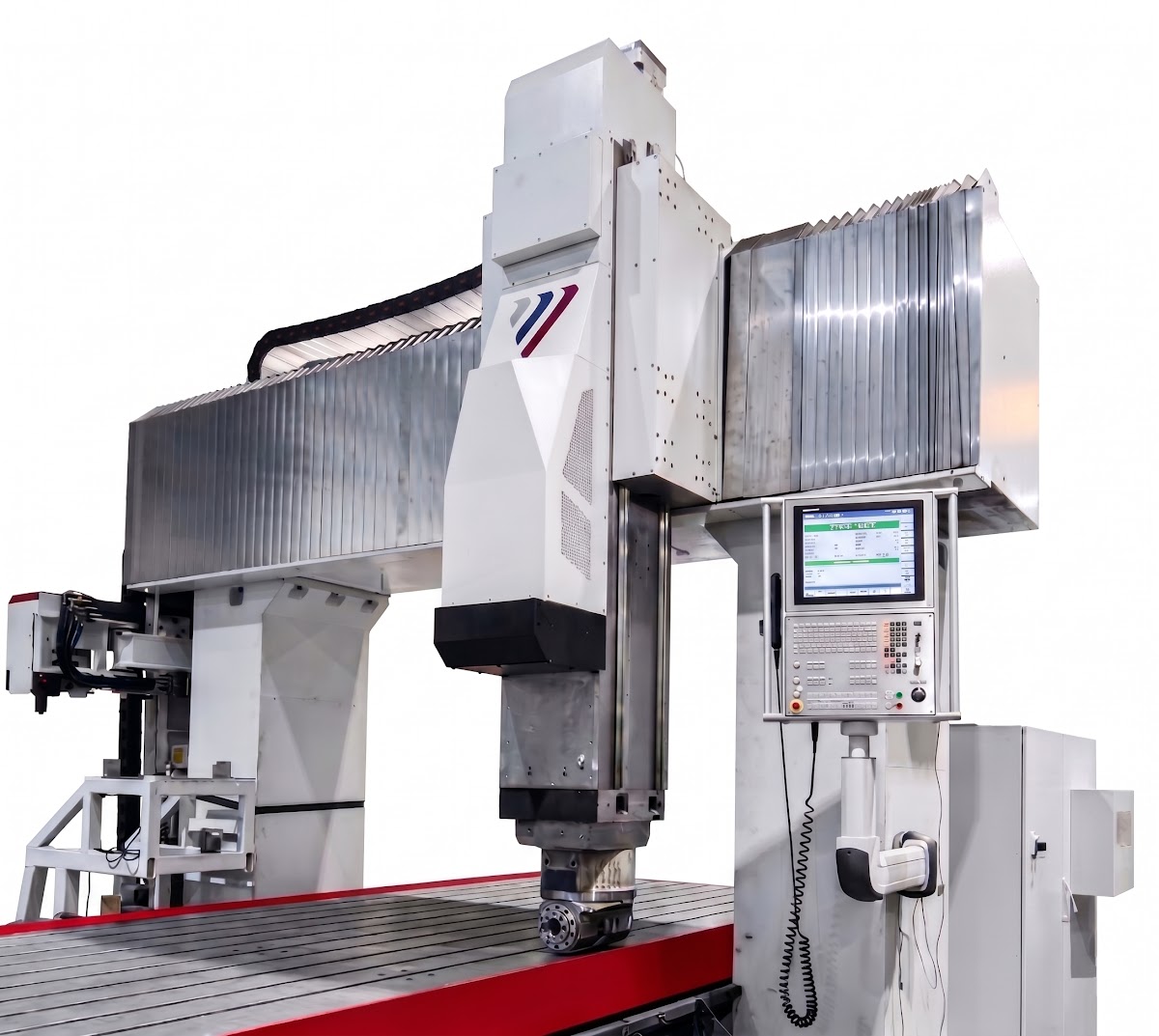

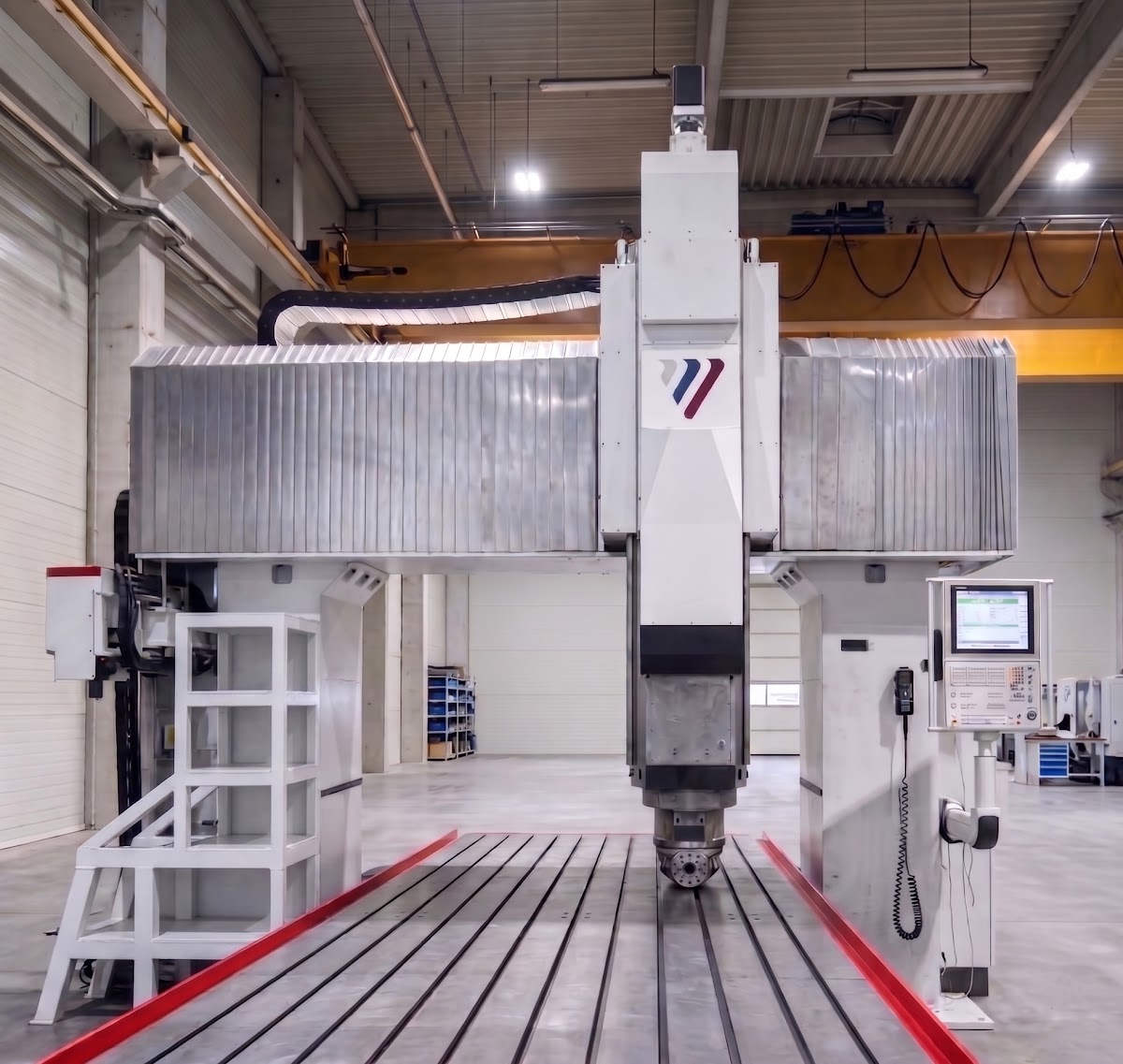

Fermat GMB 2040 CNC - Plano Milling machine

Year: 2026

Control system Heidenhain TNC 640

Dimensions of table working surface 4000x2000 mm

Travel X-axis 4000 mm

Clearance between columns 2500 mm

Distance between table and cross-rail 1890 mm

Travel Y-axis 2700 mm

Travel Z-axis 1250 mm

Spindle speed 0 - 5500 /min.

Max. load of table 15 000 kg

Scope of the modernization in 2026

• Installation of the new FERMAT headstock

• New electrical and hydraulic systems

• New Heidenhain iTNC 640 control system

• New Heidenhain measuring systems

• New linear guides

• New feed screws

• New spindle-center cooling

• Workplace safety measures in CE compliance

• New angle heads as an option

• New tool changer as an option
