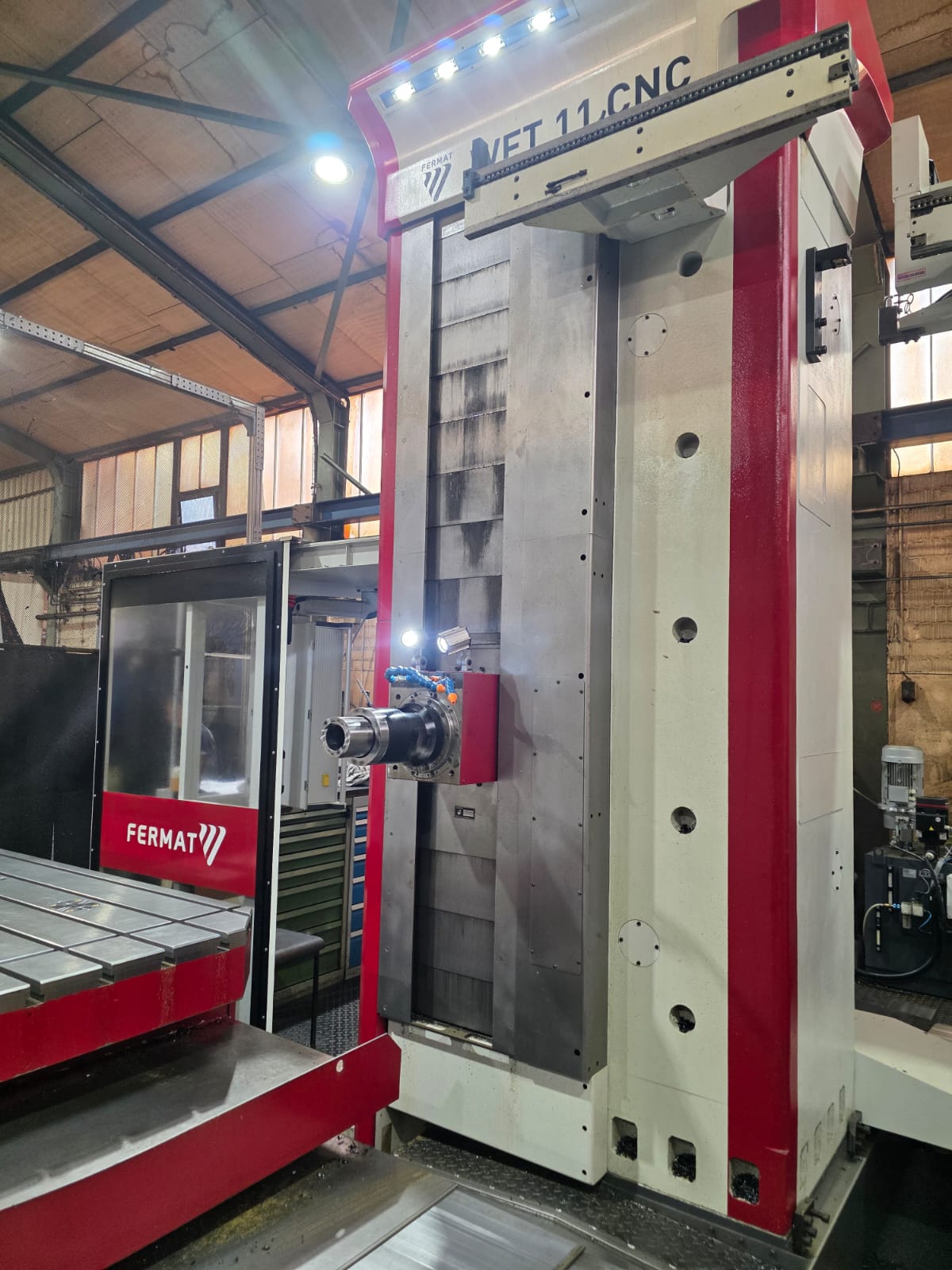

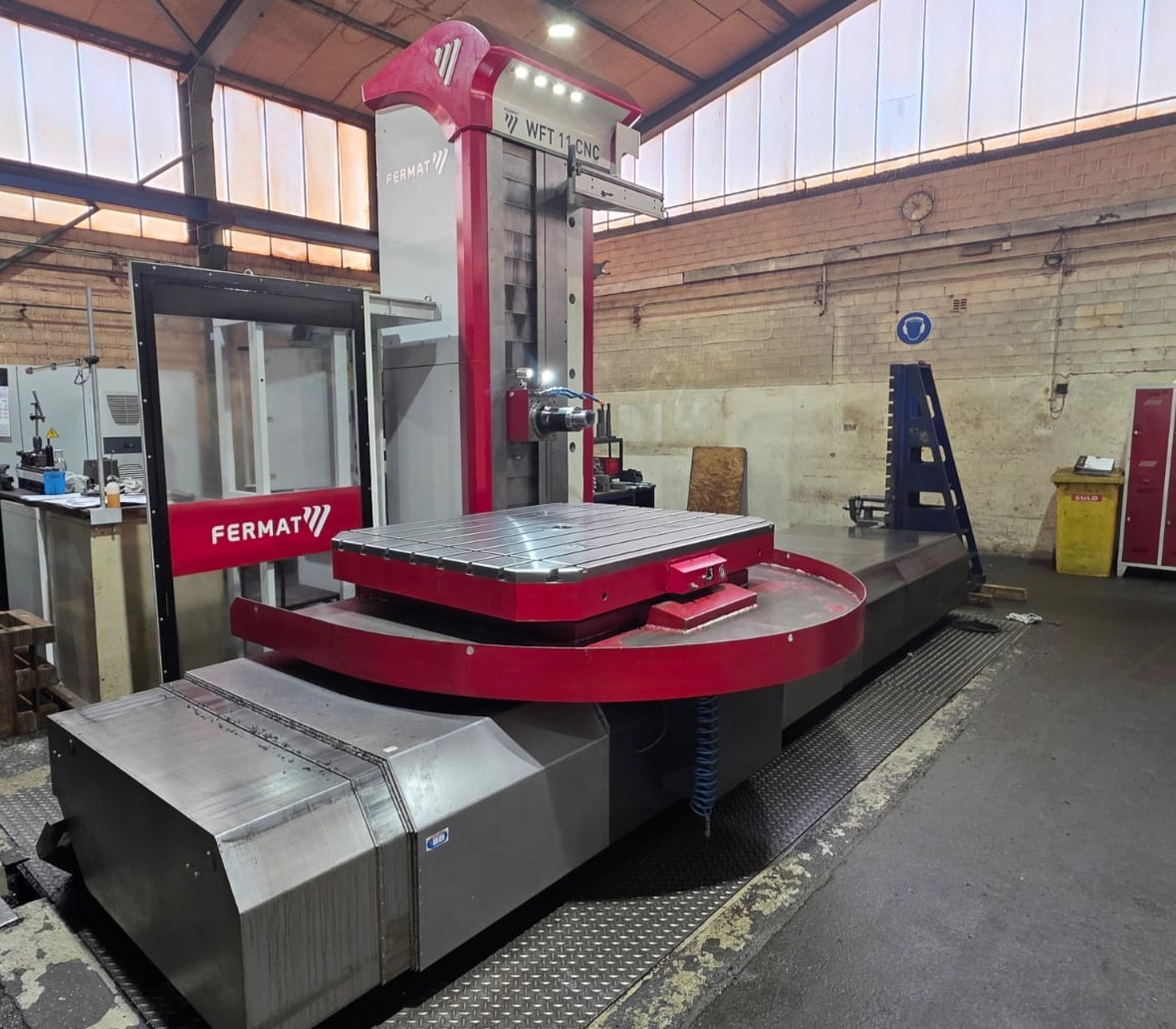

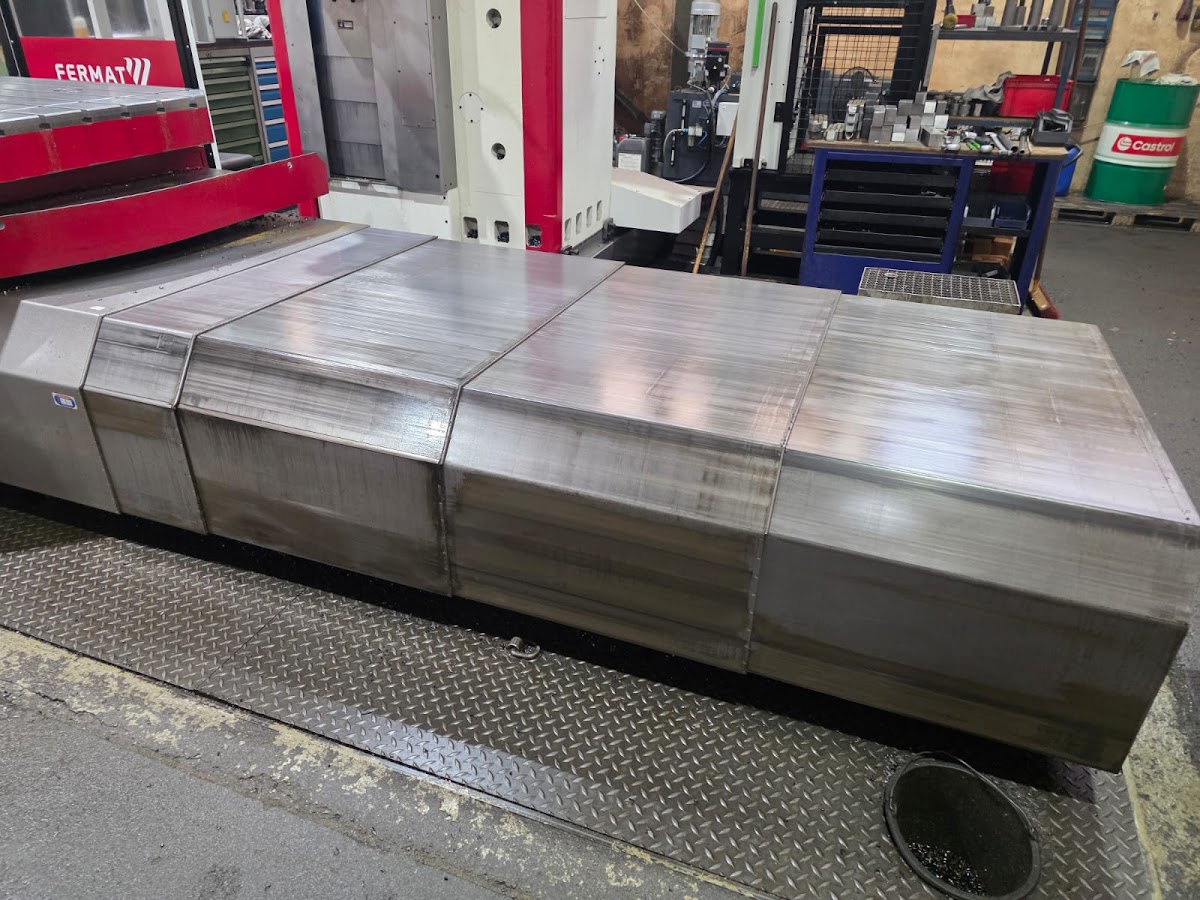

Fermat WFT 11 CNC - Borer horizontal Table

Year: 2024

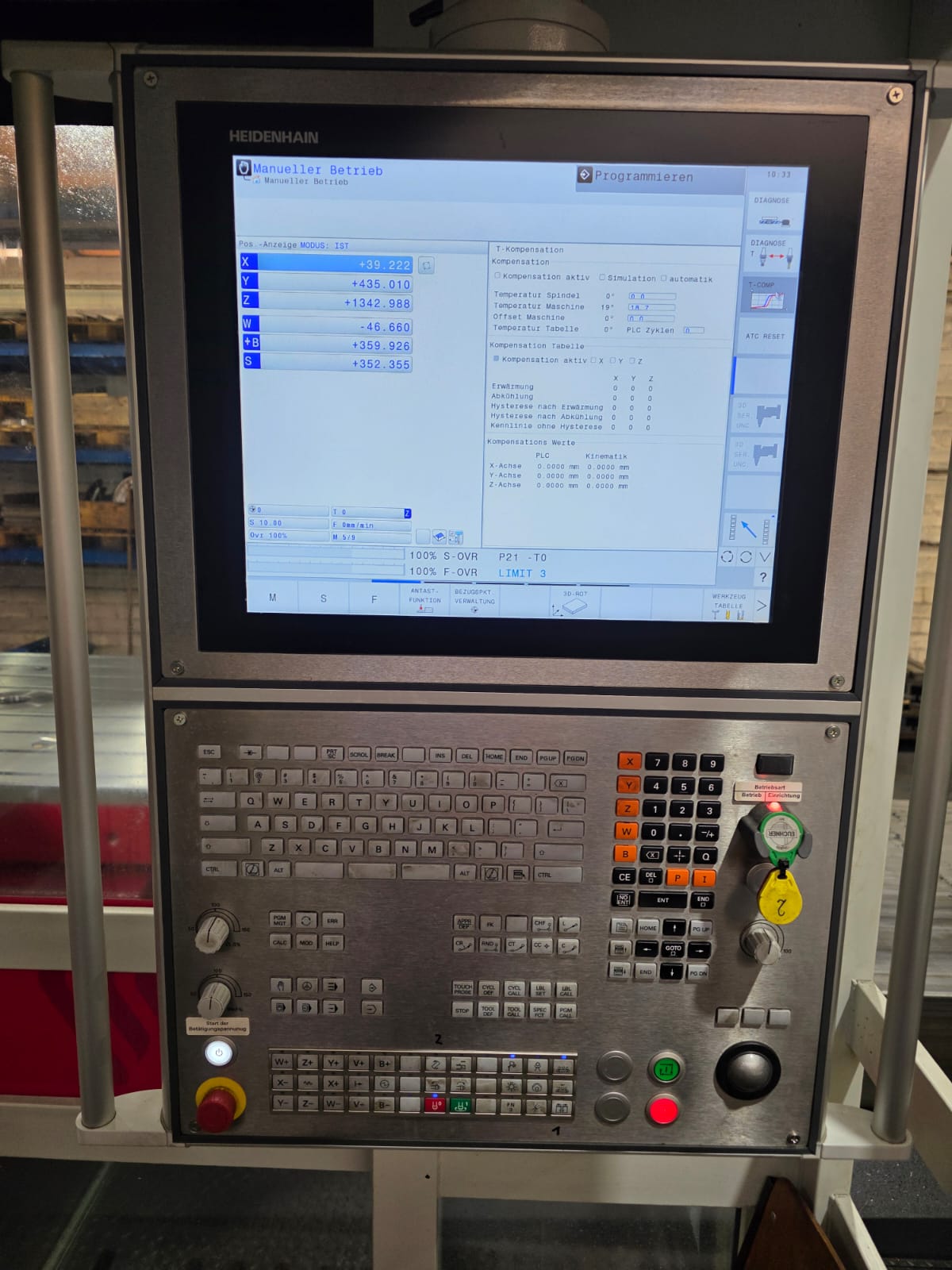

Control system Heidenhain TNC 640

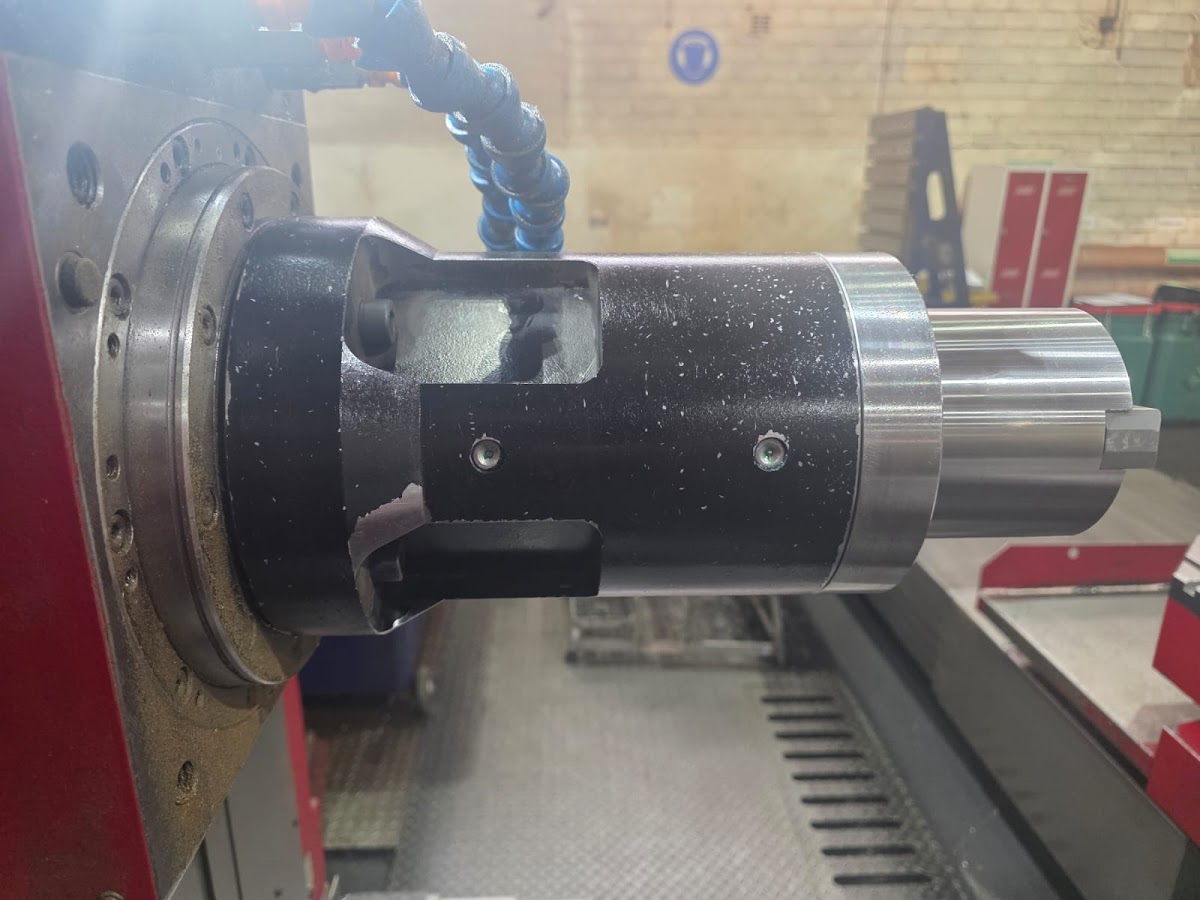

Diameter of working spindle 110 mm

Travel X-axis 3000 mm

Travel Y-axis 2000 mm

Spindle speed 10 - 4000 /min.

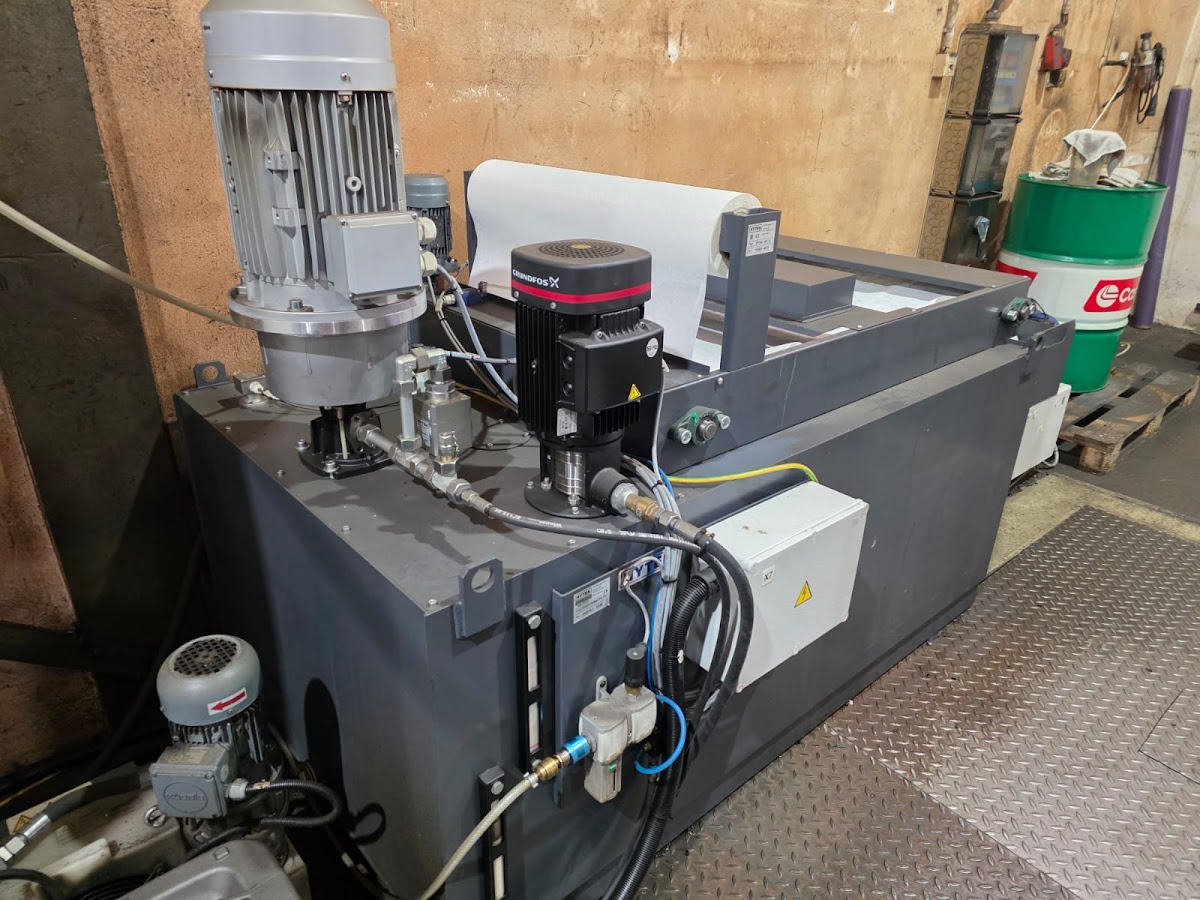

Cooling through spindle YES

Pressure of cooling 70 bar

Spindle travel - W axis 730 mm

Travel Z-axis 1250 mm

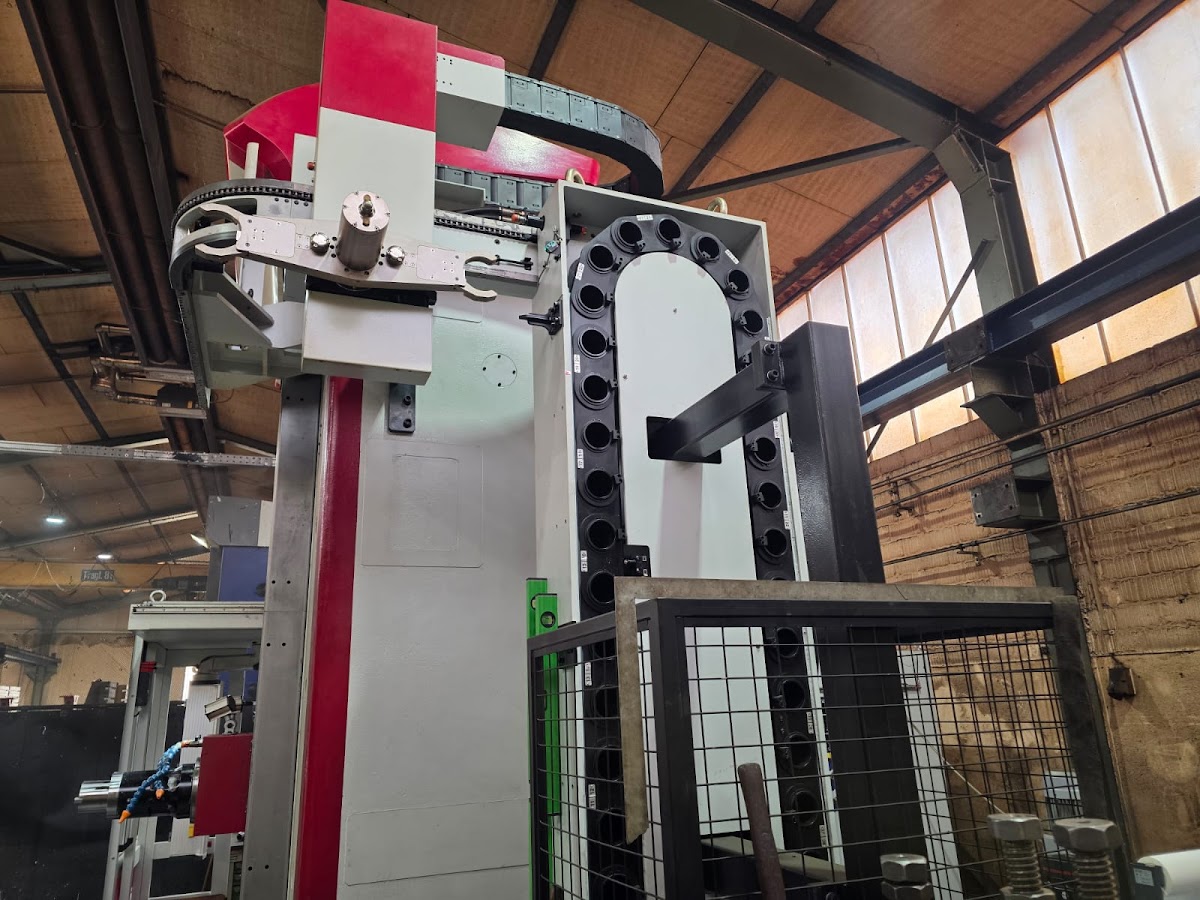

Tool magazine YES

Number of positions in magazine 40

Spindle taper ISO 50 .

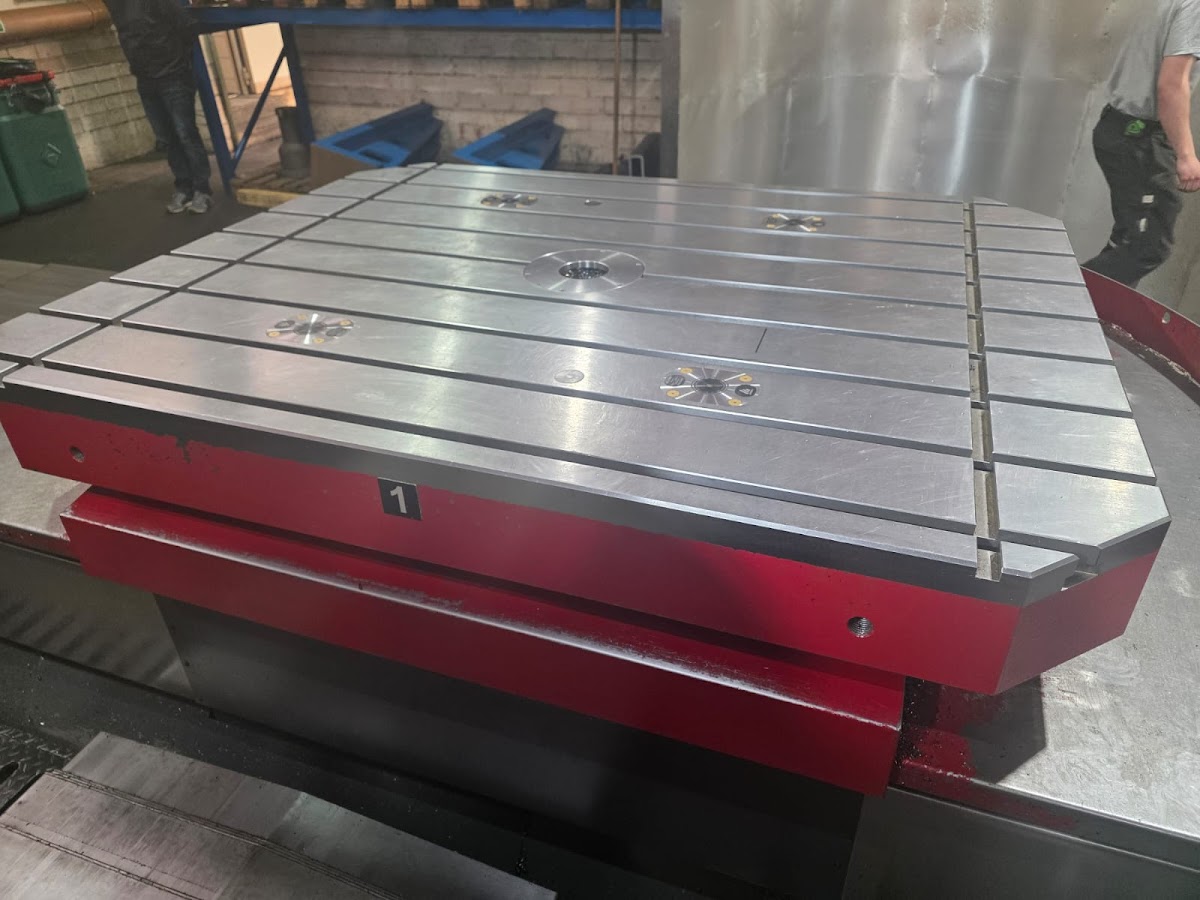

Table dimensions 1400x1800 mm

Max. load of table 8000 kg

Main motor power 31 kW

Machine weight 20800 kg

Machine dimensions l x w x h 6250 x 5600 x 4450 mm

CNC on: 3,158 hrs

spindle: 1,095 hrs

Zeropoint at rotary table

Hexagon workpiece probe
