Year: 2011
Control system Heidenhain TNC 530
Diameter of working spindle 130 mm
Travel X-axis 4000 mm
Travel Y-axis 2000 mm
Spindle speed 10 - 3000 /min.
Cooling through spindle YES
Pressure of cooling 20 bar
Spindle travel - W axis 730 mm
Travel Z-axis 1700 mm
Tool magazine NO
Spindle taper ISO 50 .

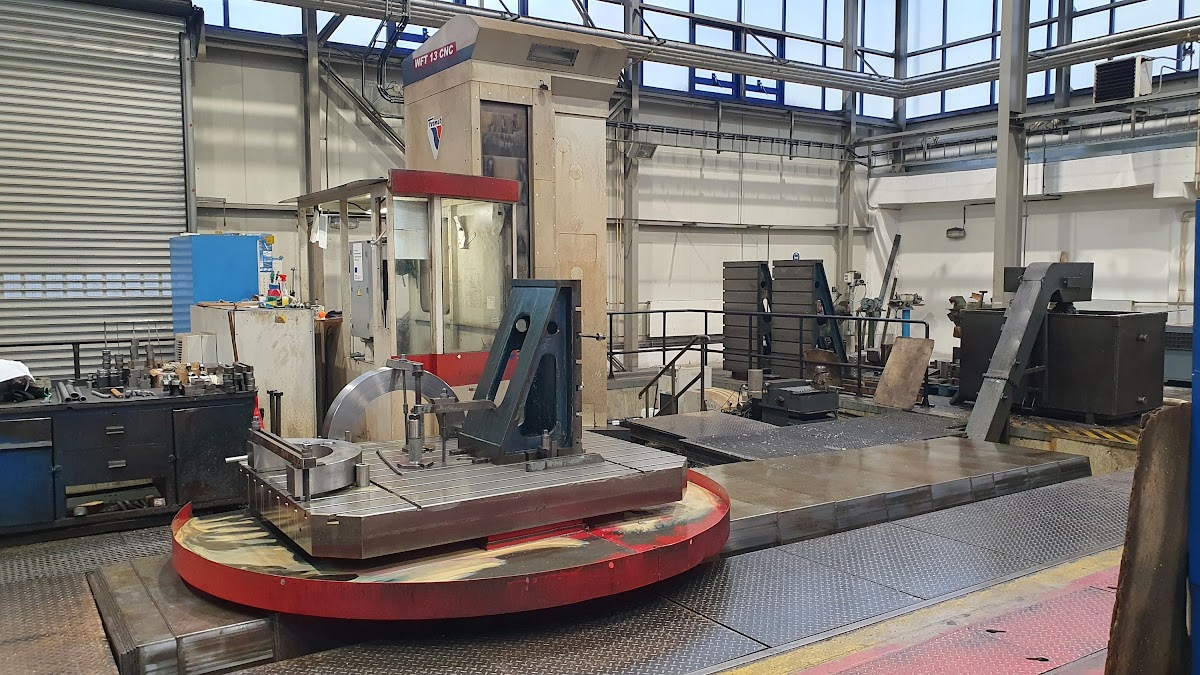

Table dimensions 1800x2200 mm
Main motor power 41 kW
The machine is in good technical condition; testing under power is possible.
Accessories: workpiece probe, manual head, flange
