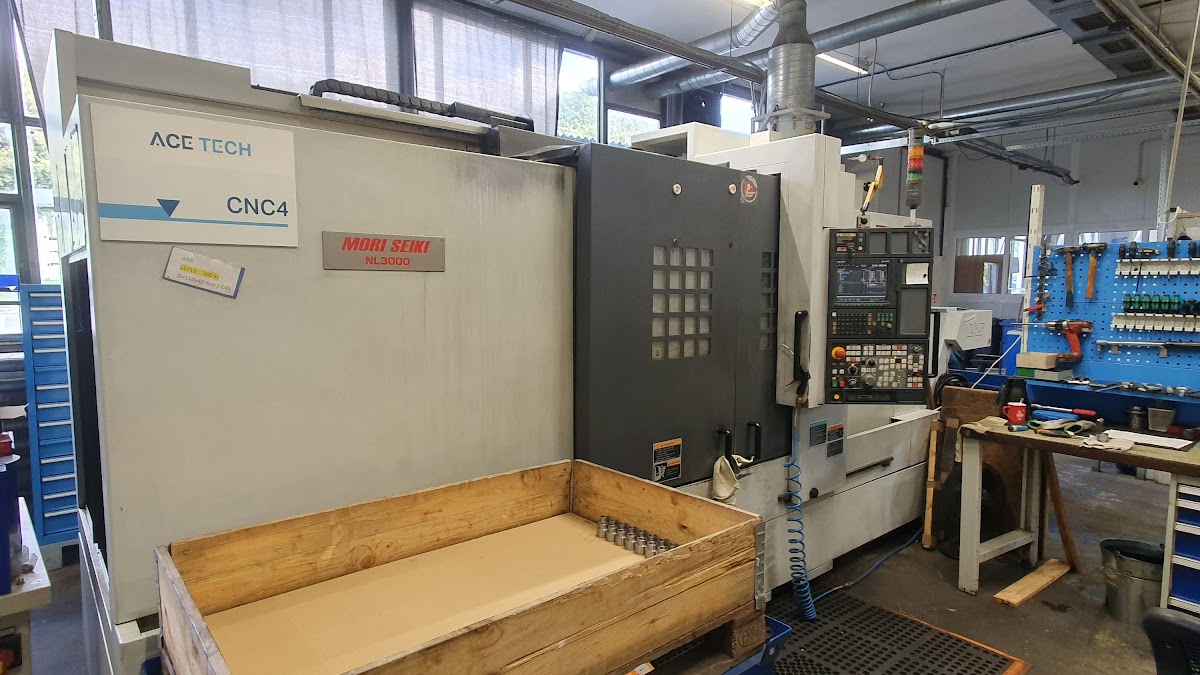

MORI SEIKI NL 3000Y/1250 Lathe CNC

Year: 2008

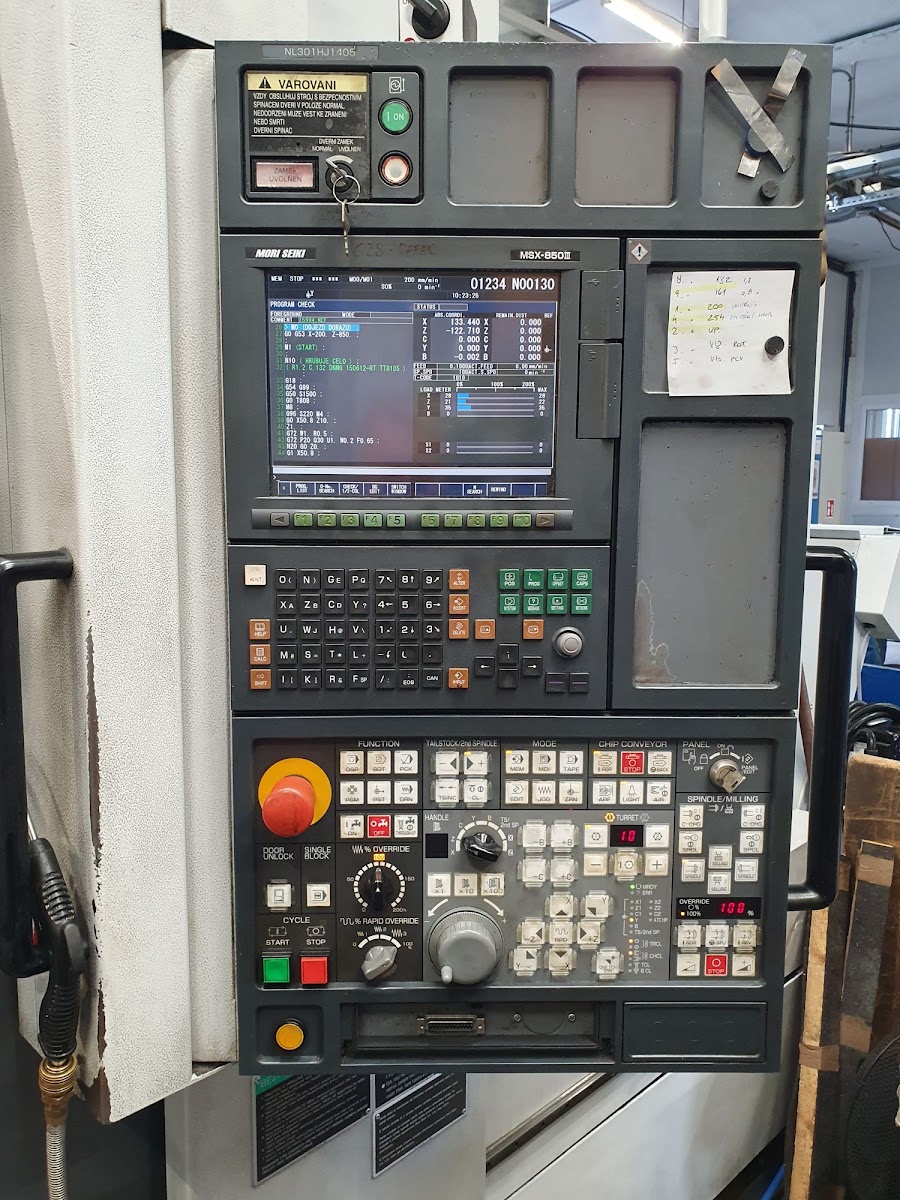

Control system MORI SEIKI MSX-850 MAPS II

Turn table diameter 430 mm

Turning lenght 1260 mm

Sloping bed YES

Y axis YES

Travel Y-axis (lathe) +- 60 mm

Counterspindle NO

Spindle bore 105 mm

Milling head NO

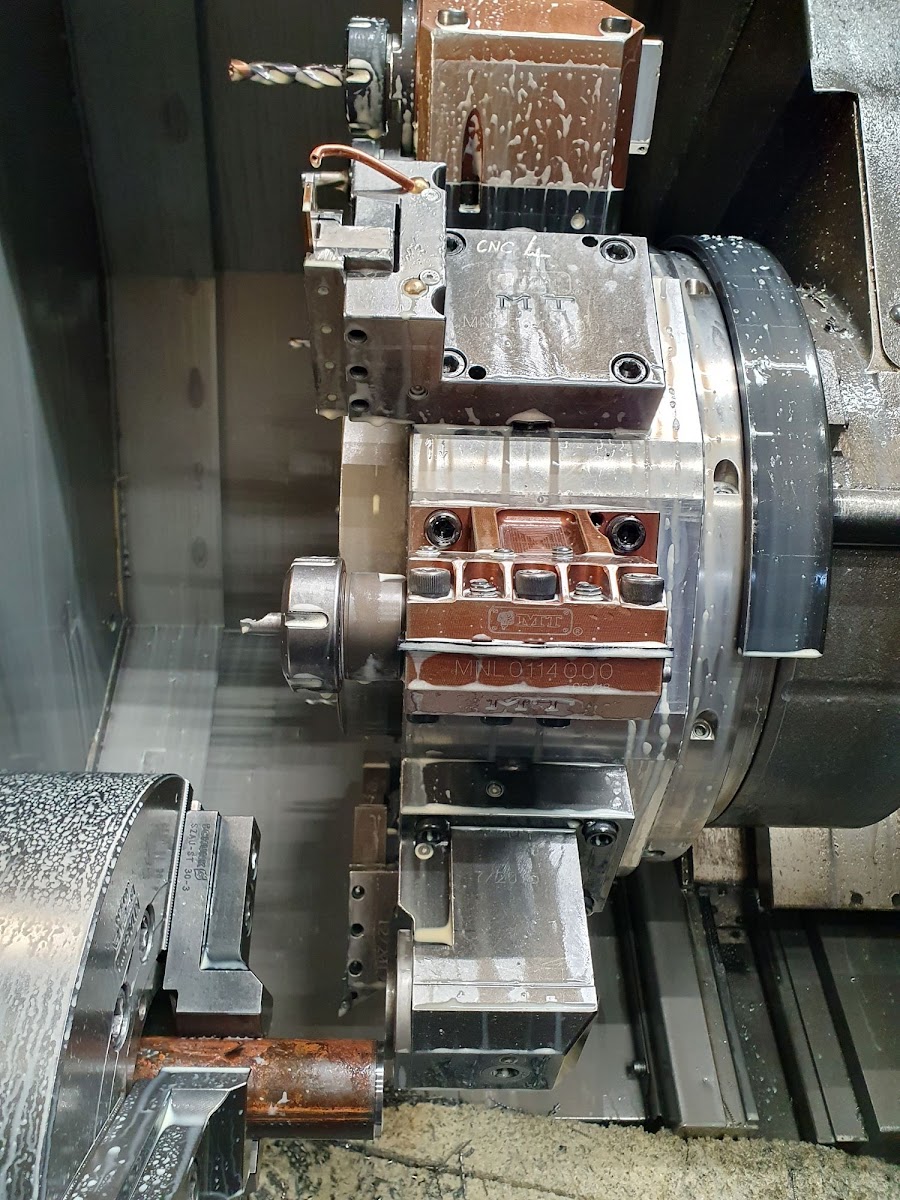

Driven Tools YES

Number of tool positions (driven) 10

Bar loader NO

Travel X-axis 280 mm

Travel Z-axis 1370 mm

Swing over bed 995 mm

Swing over cross slide 825 mm

Spindle speed 1 - 3000 /min.

Axis C 0,001 °

Power of driven tools 5,5 kW

Main motor power 25/30 kW

Max. torque of spindle 1000/1300 Nm

Machine weight 8100 kg

Machine dimensions l x w x h 4532x2291x2390 mm

The machine is in very good technical condition and can be tested.
