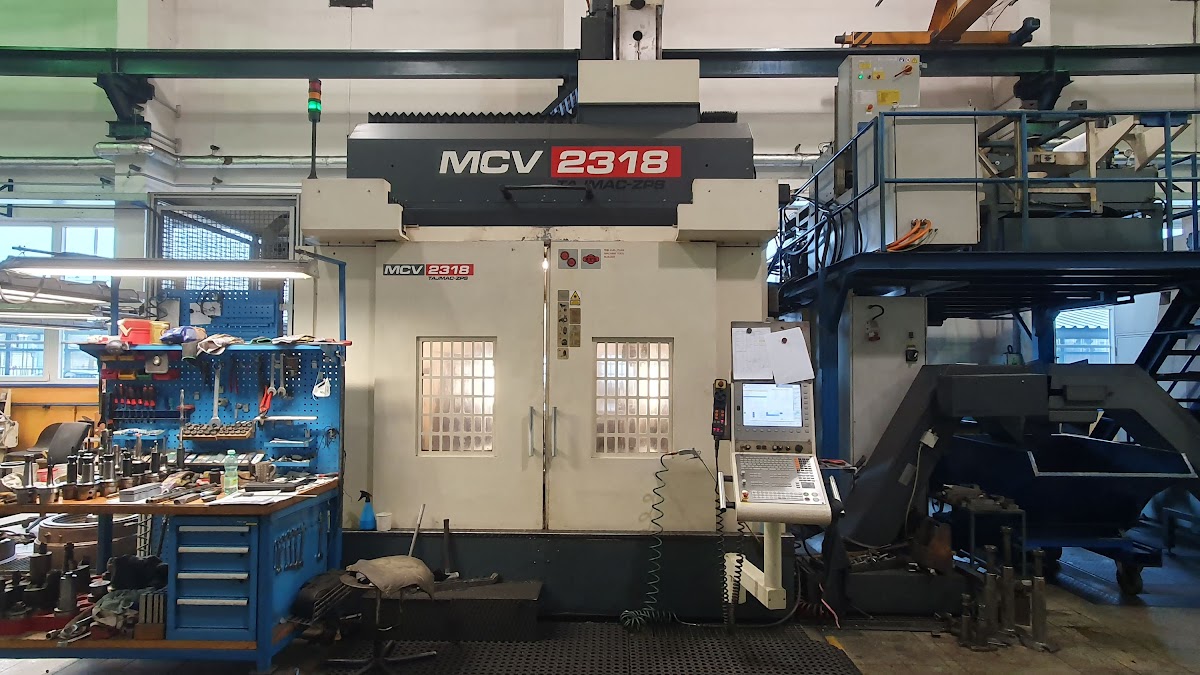

TAJMAC-ZPS MCV 2318 - Vertical Machining centre

Year: 2014

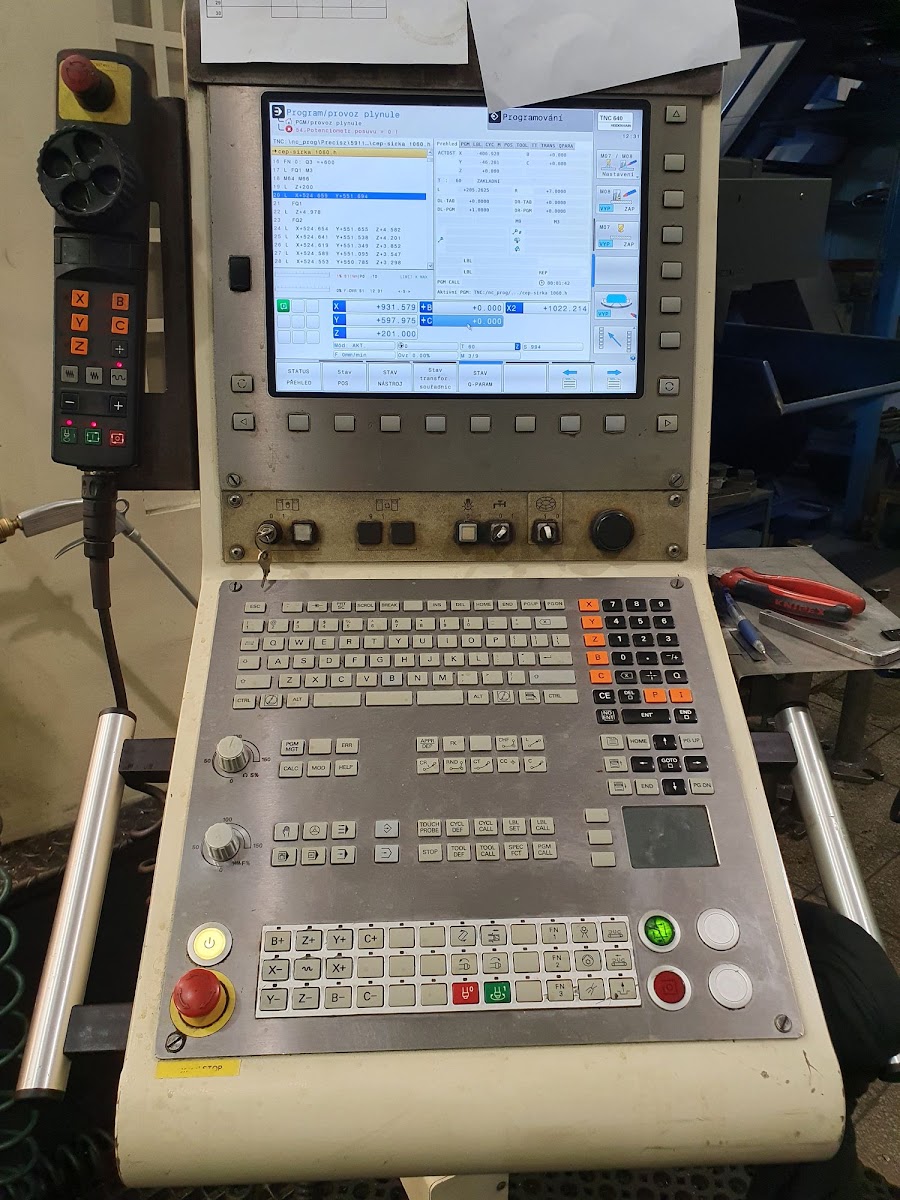

Control system Heidenhain TNC 530

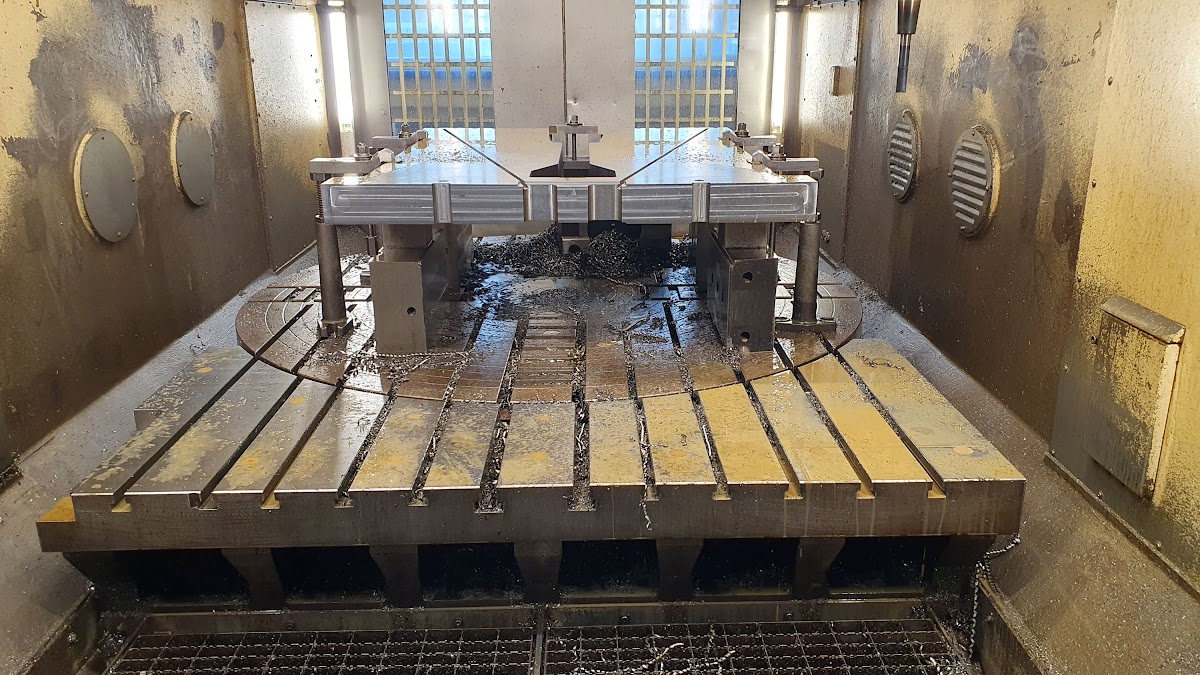

Clamping area of table 1800 (1600x2500) mm

Travel X-axis 2300 mm

Travel Y-axis 1400 mm

Travel Z-axis 1050 mm

Spindle speed 10 - 10000 /min.

Number of driven axes 5

Cooling through spindle YES

Pressure of cooling 40 bar

Spindle taper HSK-A100 .

Max. weight of workpiece 10000/5000 kg

Max. torque of spindle 130/150 Nm

Axis C 360 °

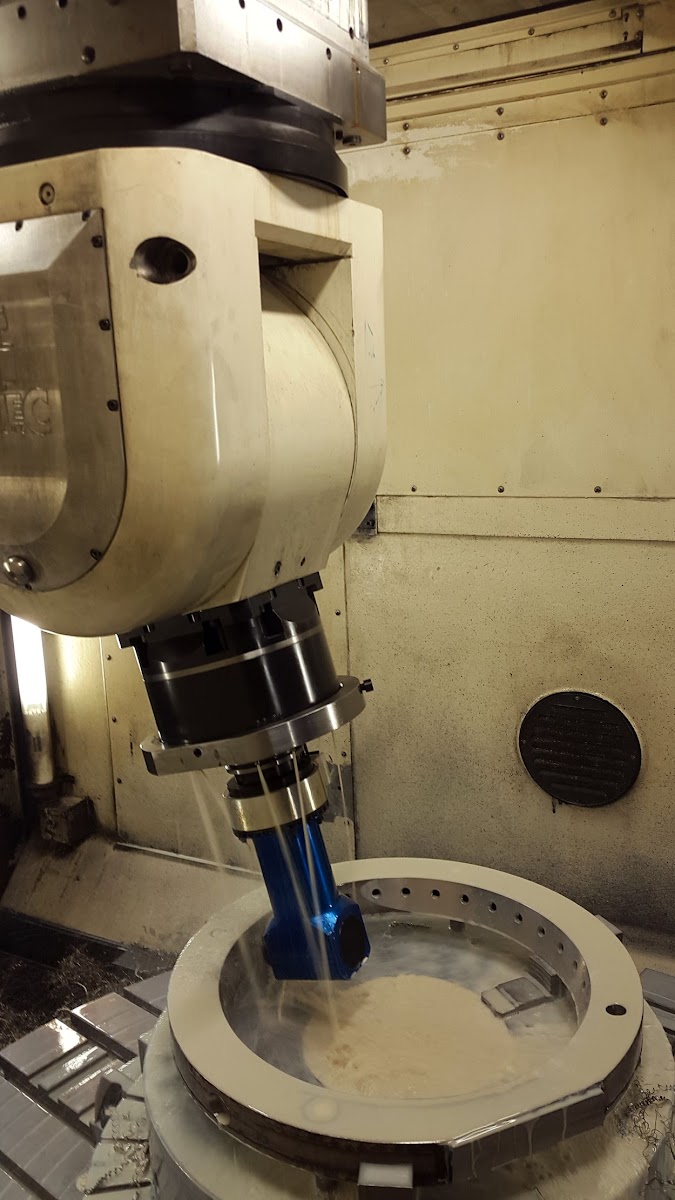

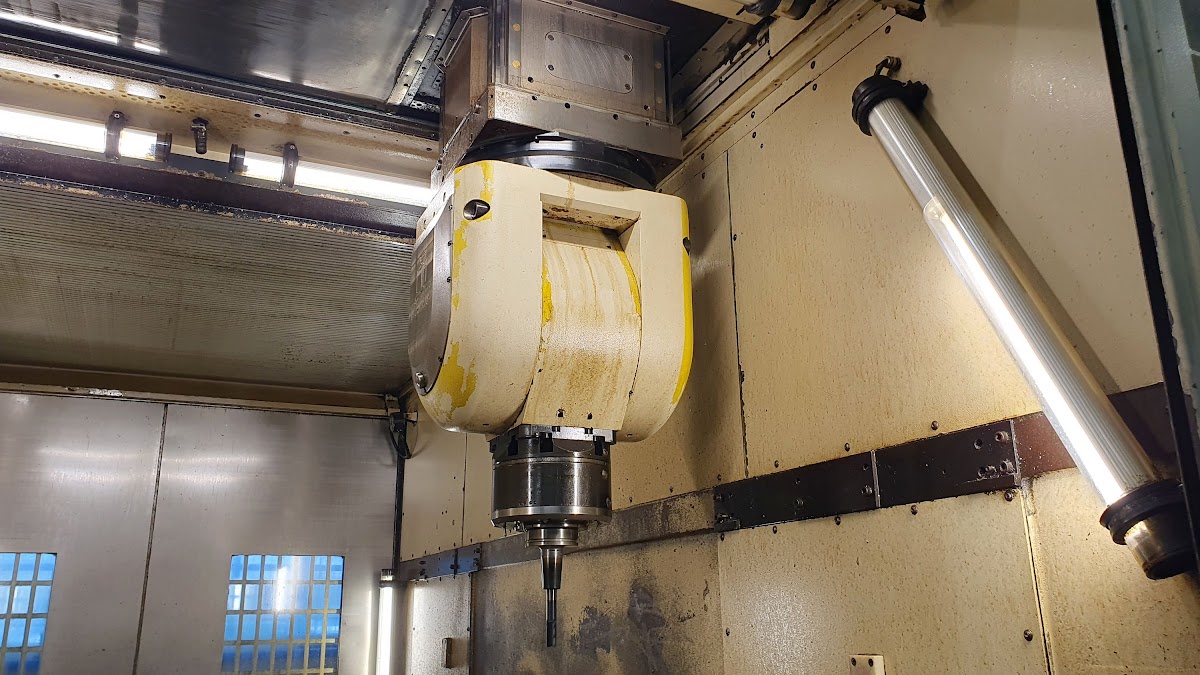

Axis B ±110 °

Rapid feed 50 m/min

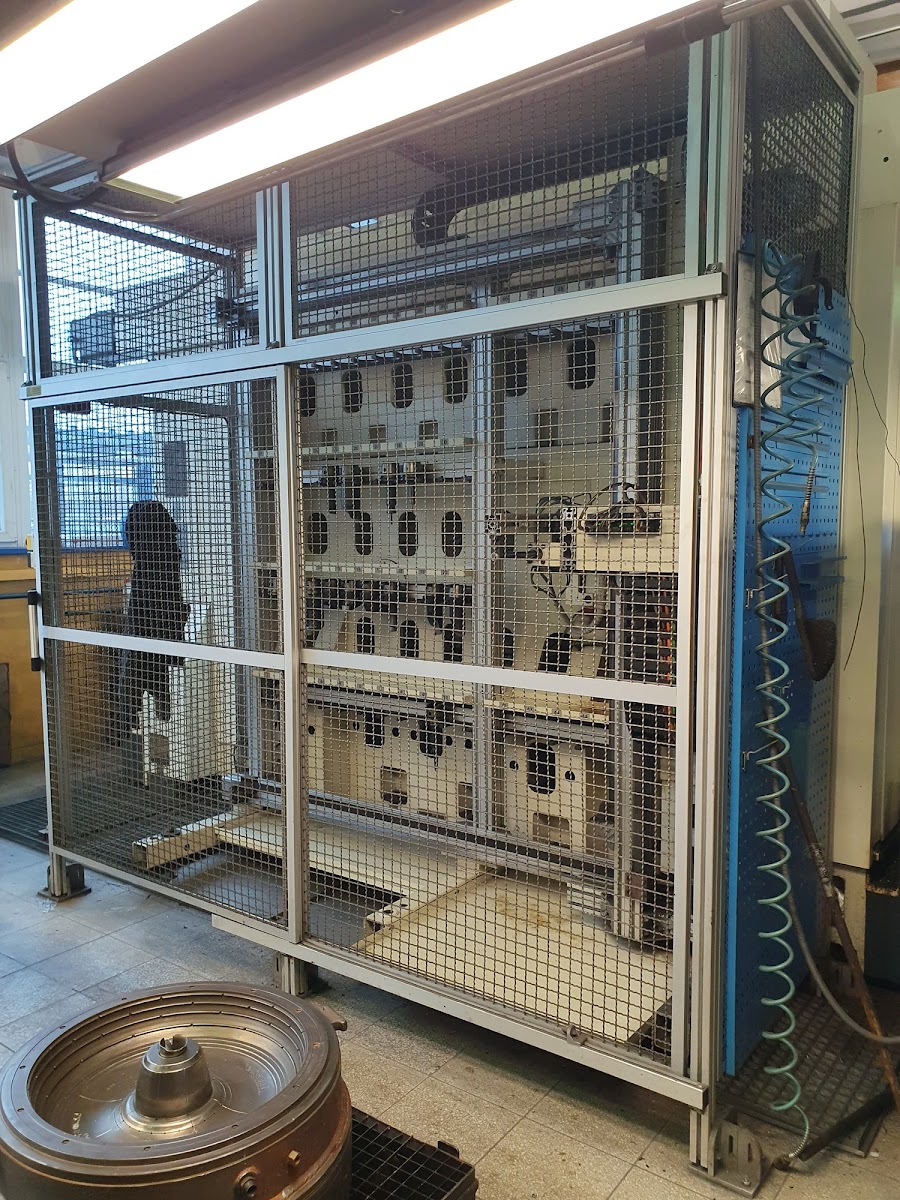

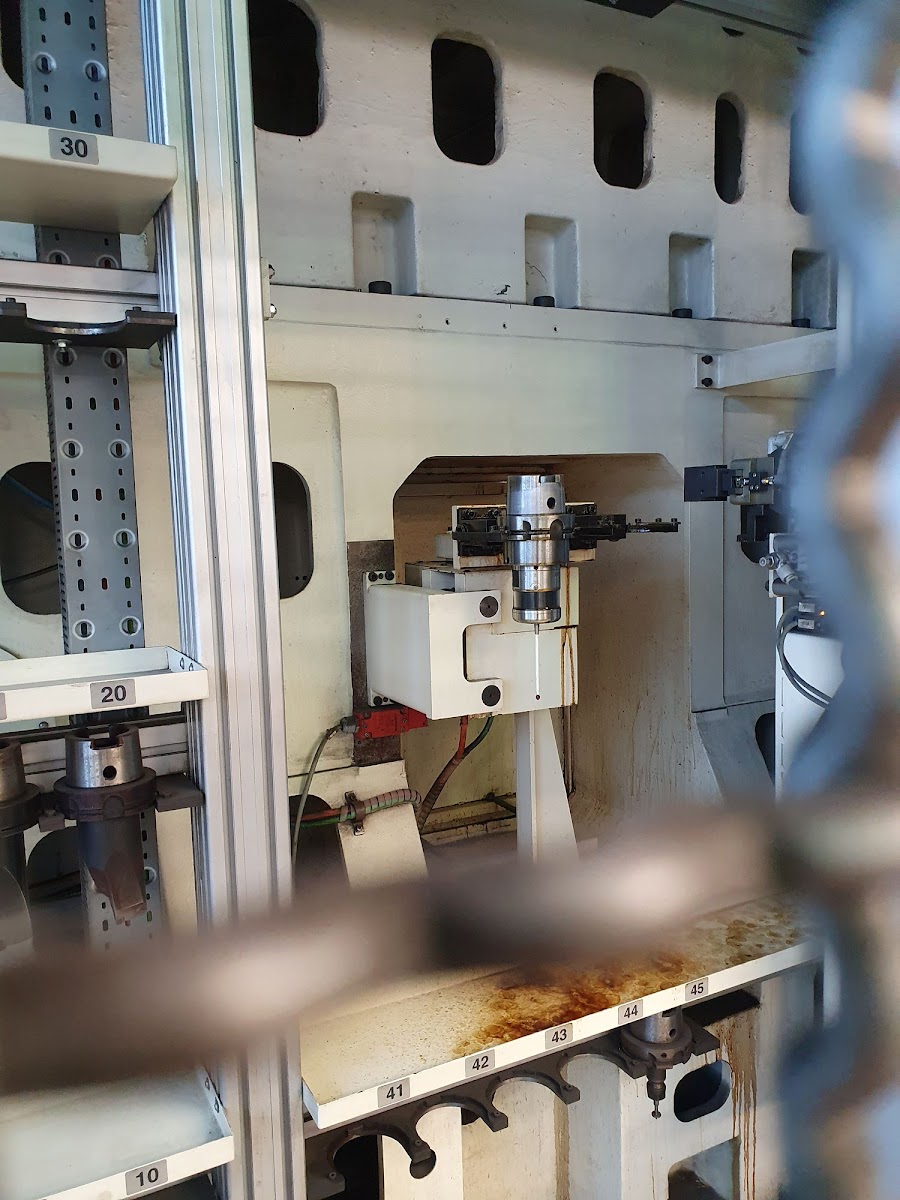

Tool magazine YES

Number of positions in magazine 48

Machine weight 32000 kg

Machine dimensions l x w x h 6640x6000x4800 mm

The machine is in good technical condition, under power, after agreement it is possible to test it.

Accessories: tool and workpiece probe
