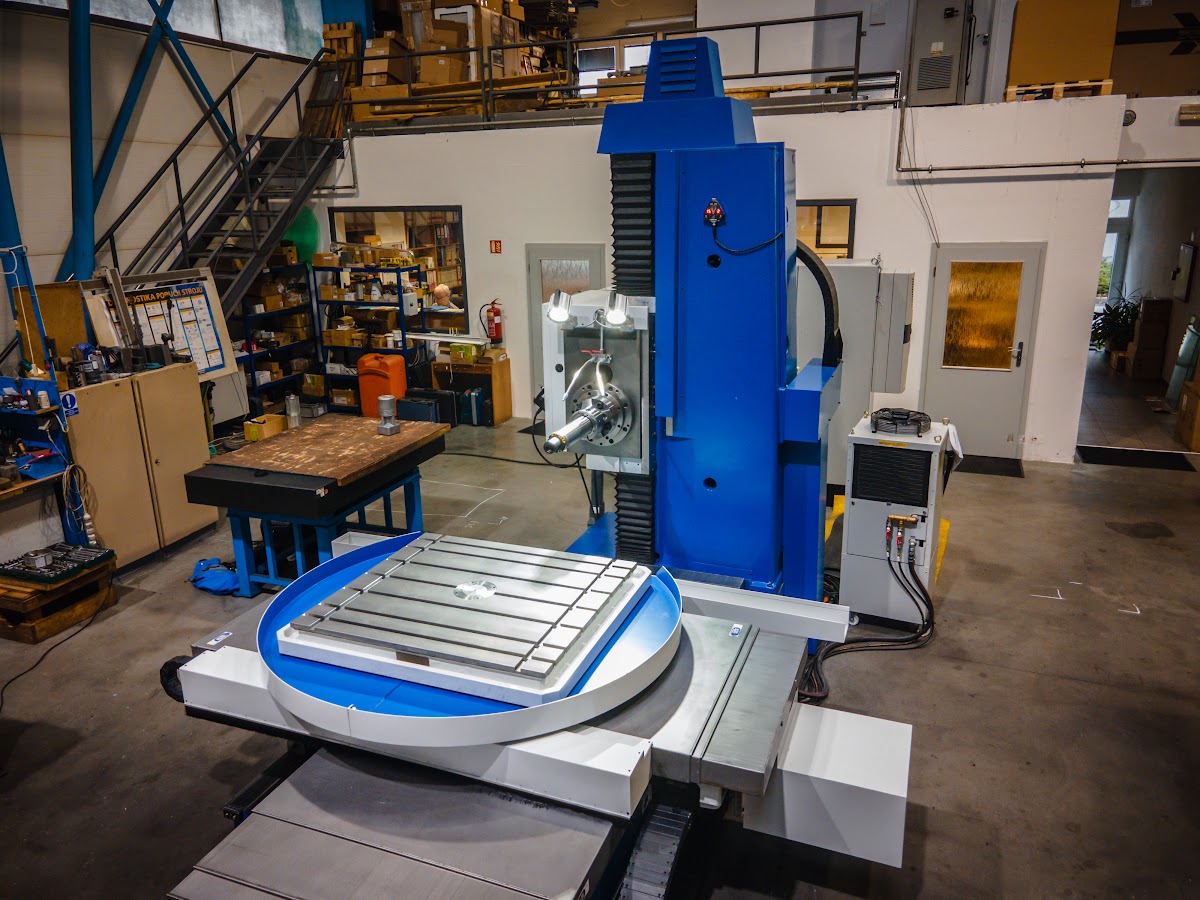

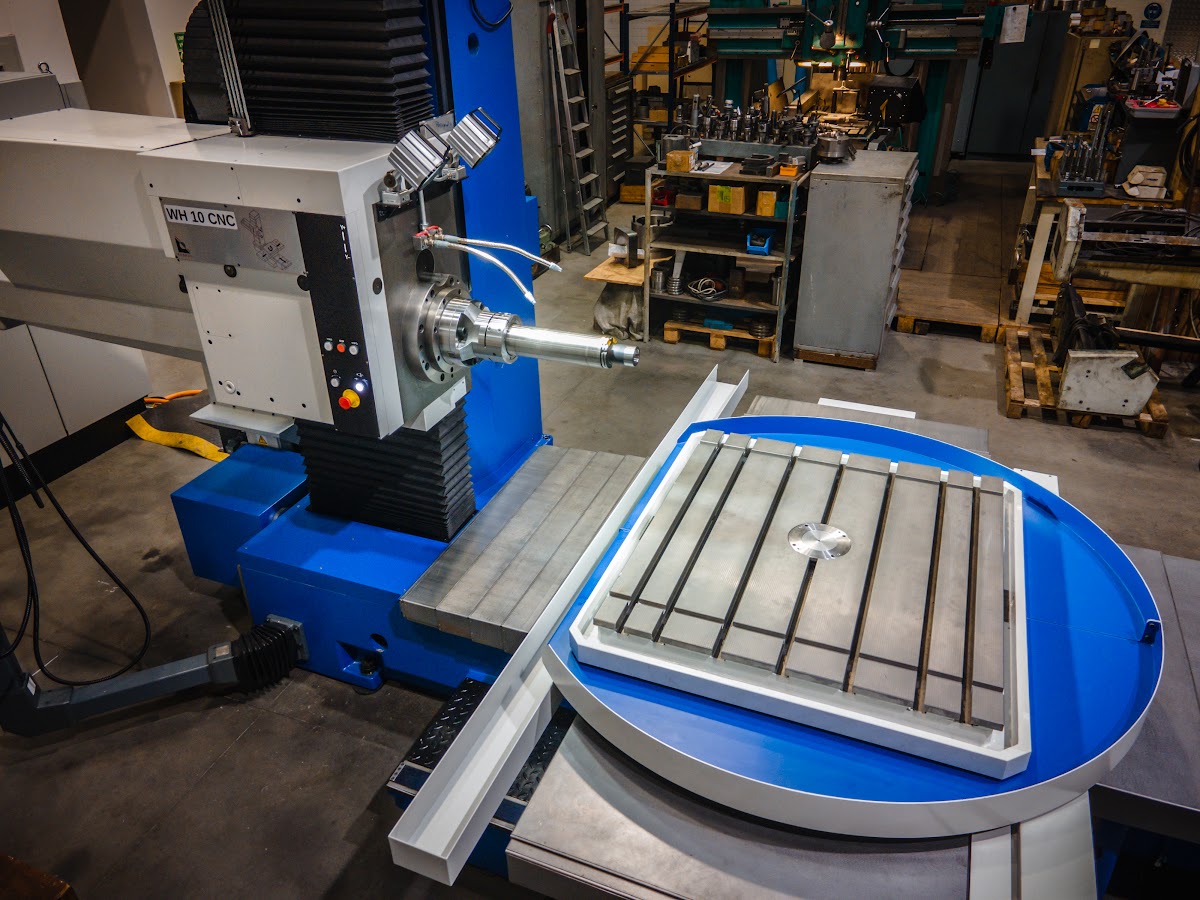

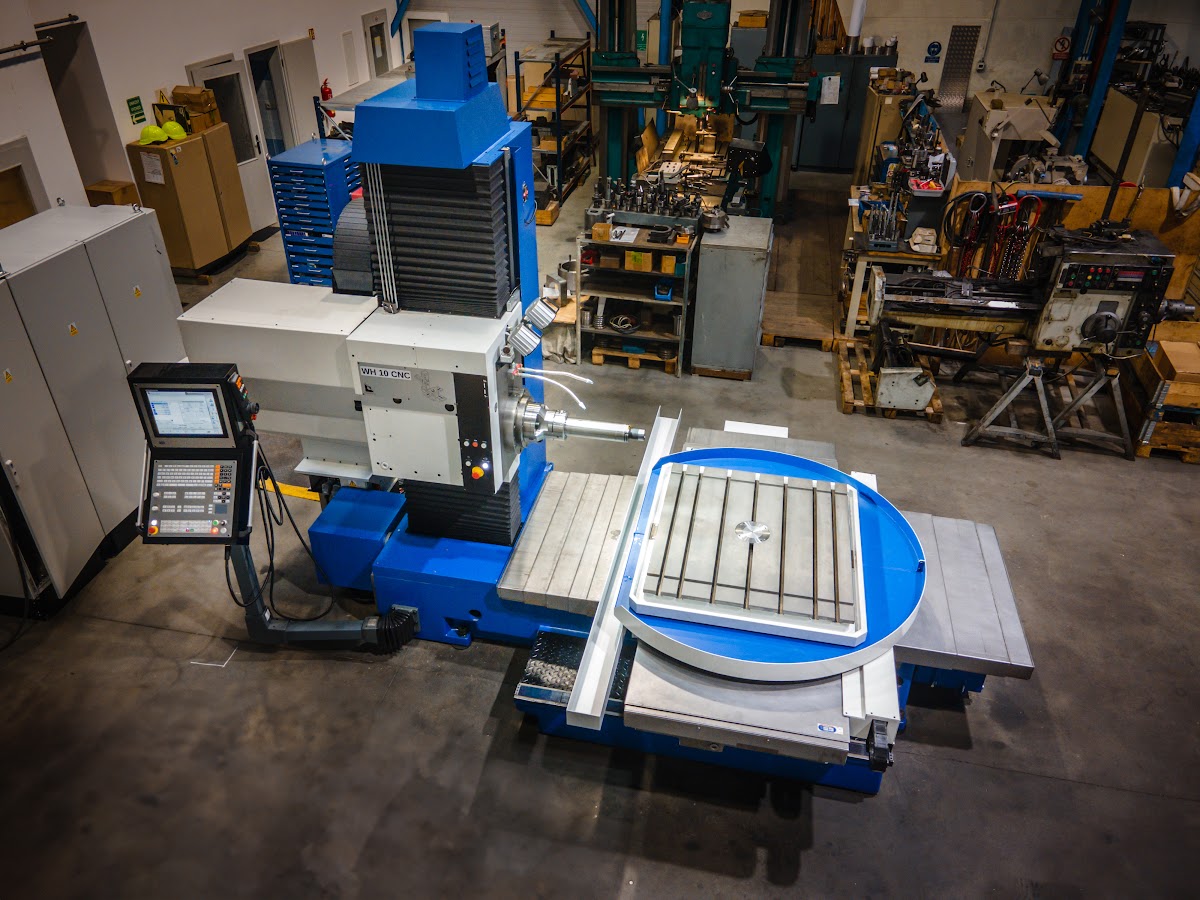

TOS WH 10 CNC Borers horizontal / Table

Year 2026

Control system Heidenhain TNC 620

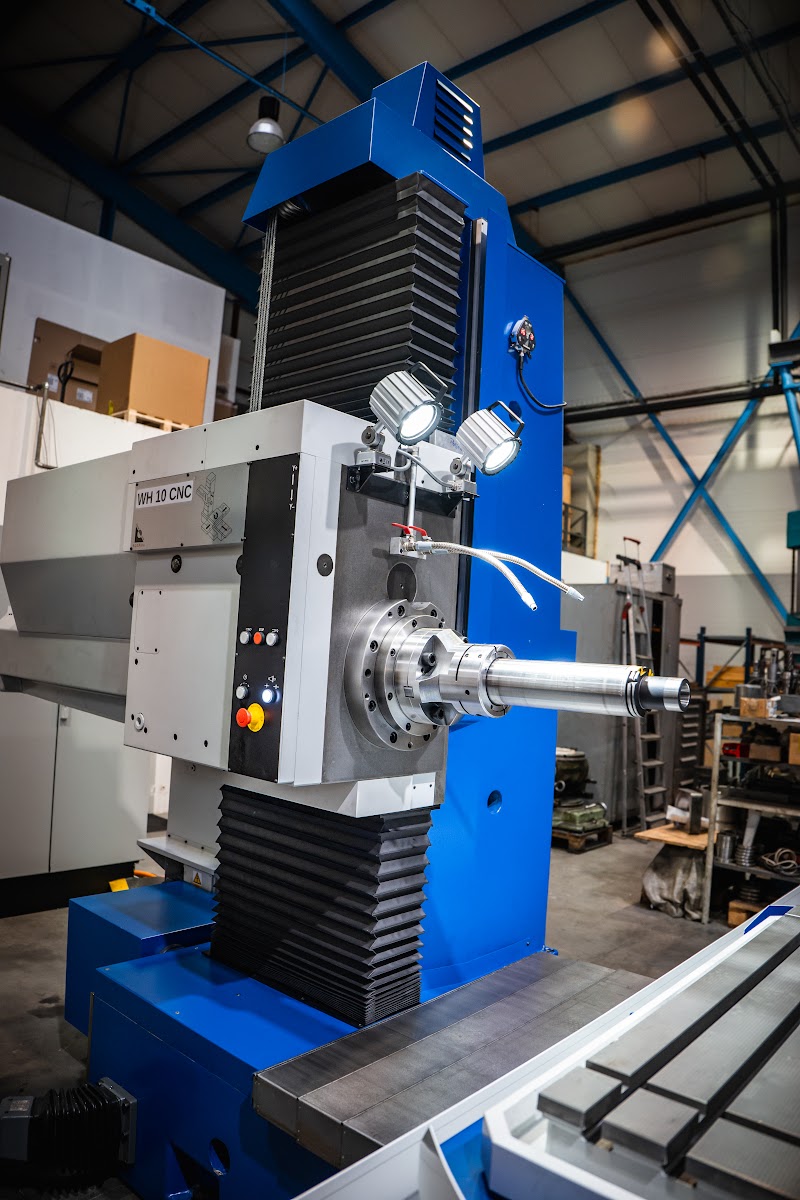

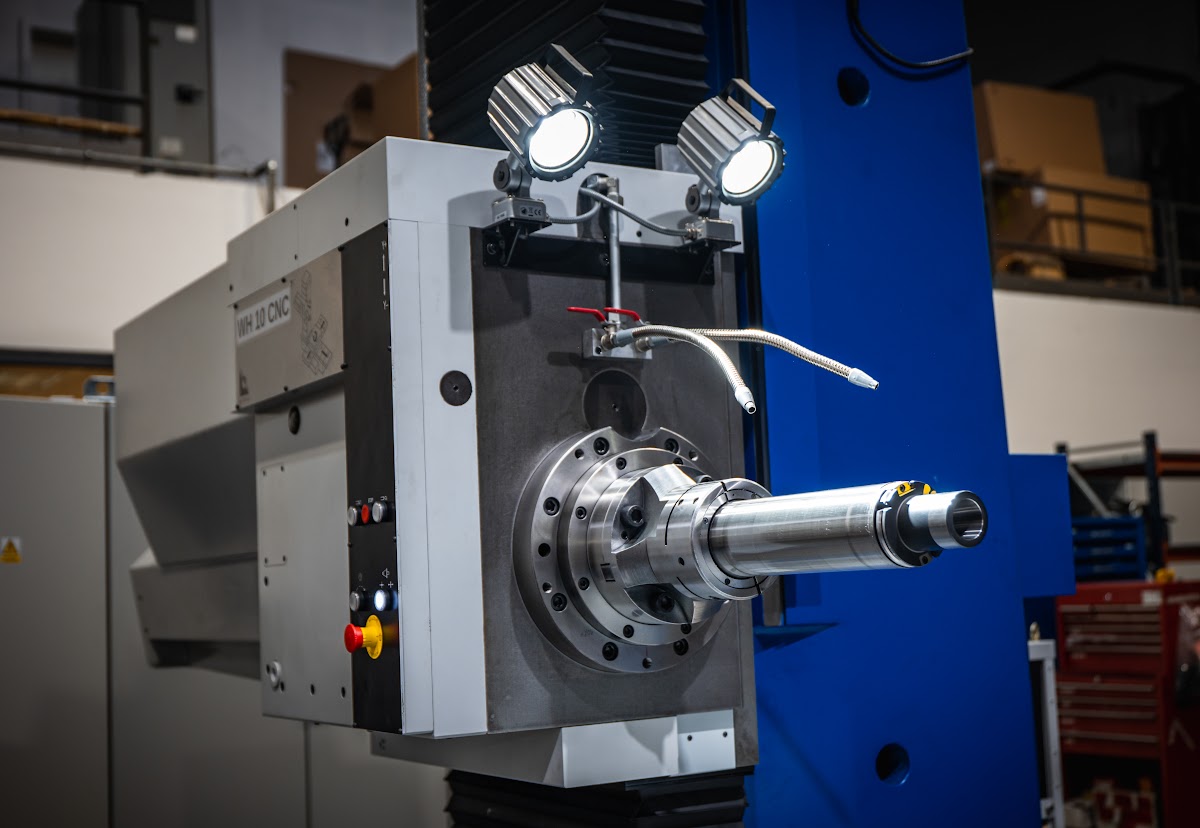

Diameter of working spindle 100 mm

Travel X-axis 1250 mm

Travel Y-axis 1030 mm

Spindle speed 16 - 2500 /min.

Cooling through spindle NO

Spindle travel - W axis 730 mm

Travel Z-axis 930 mm

Tool magazine NO

Spindle taper ISO 50 .

Rapid feed 8 m/min

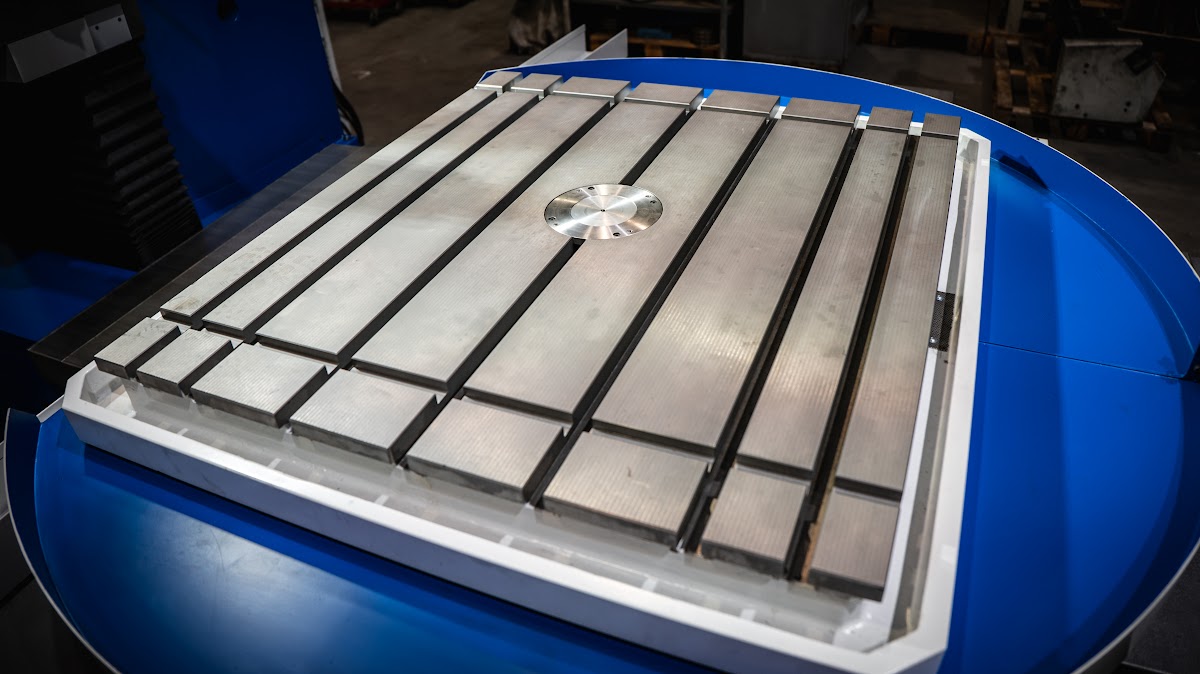

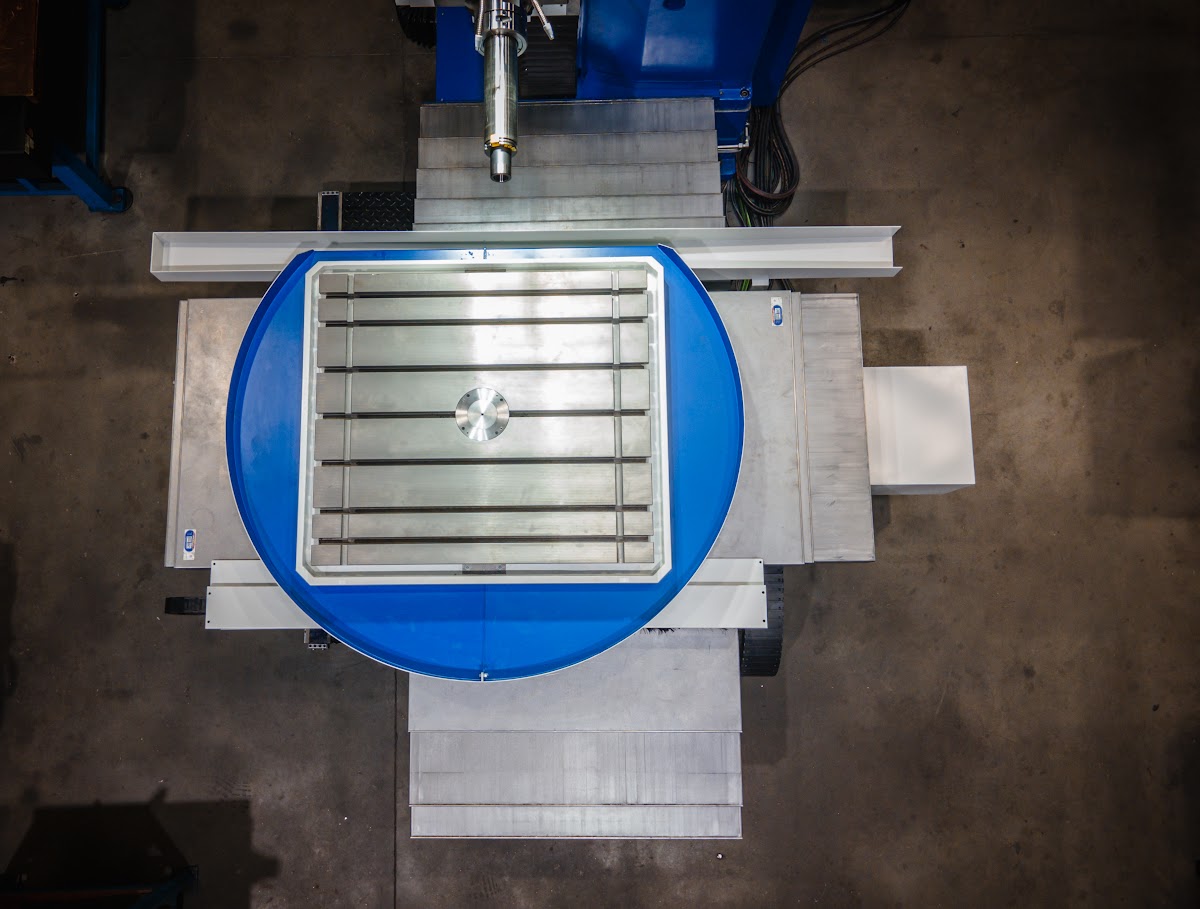

Table dimensions 1000x1120 mm

Max. load of table 3000 kg

Machine dimensions l x w x h 5000x3050x2800 mm

Machine weight 11500 kg

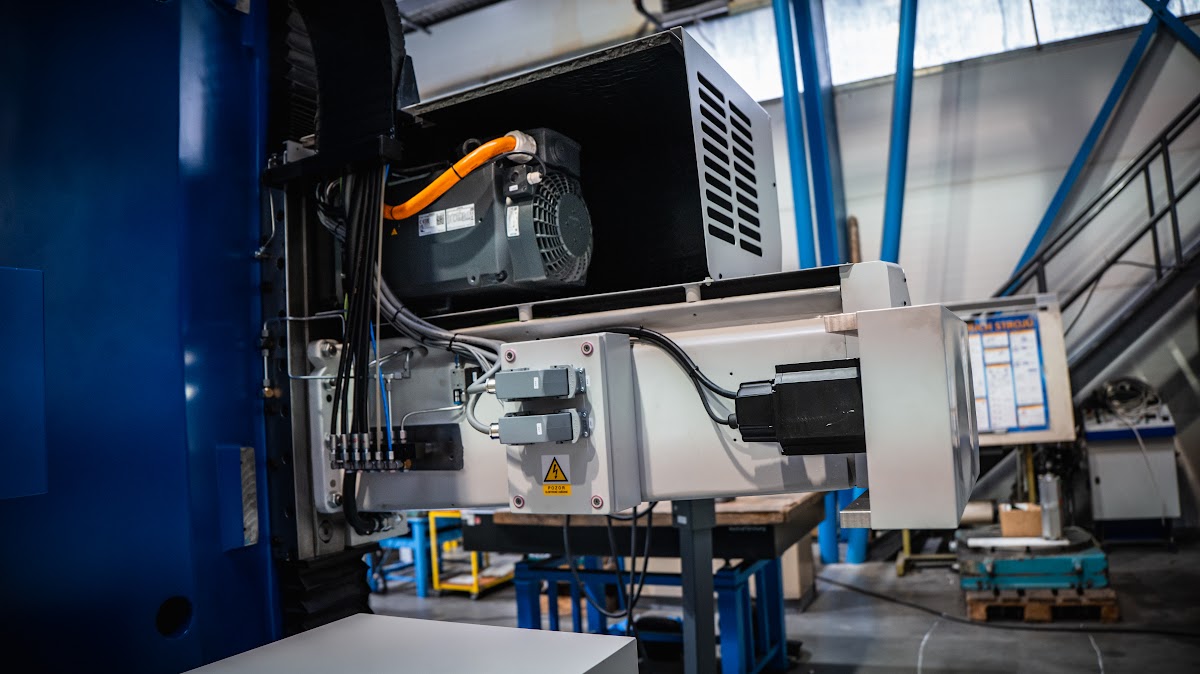

spindle motor: Siemens 17.5 kW S1 (26.25 kW S6-40%)

control system: including options 19,20 (extended programming functions, graphics during testing and machining)

controlled axes: X/Y/Z/W/B

workpiece probe: Heidenhain TS 460, including option 17 (touch probe cycles)

handwheel: Heidenhain HR510

measuring, rulers: Heidenhain, EnDat 22 (X,Y,Z LC415)

displacement motors: Heidenhain QSY

external tool cooling: 1.5 bar 38 l/min

tool change: manual change, cavity blow

removal of chips: collecting tub

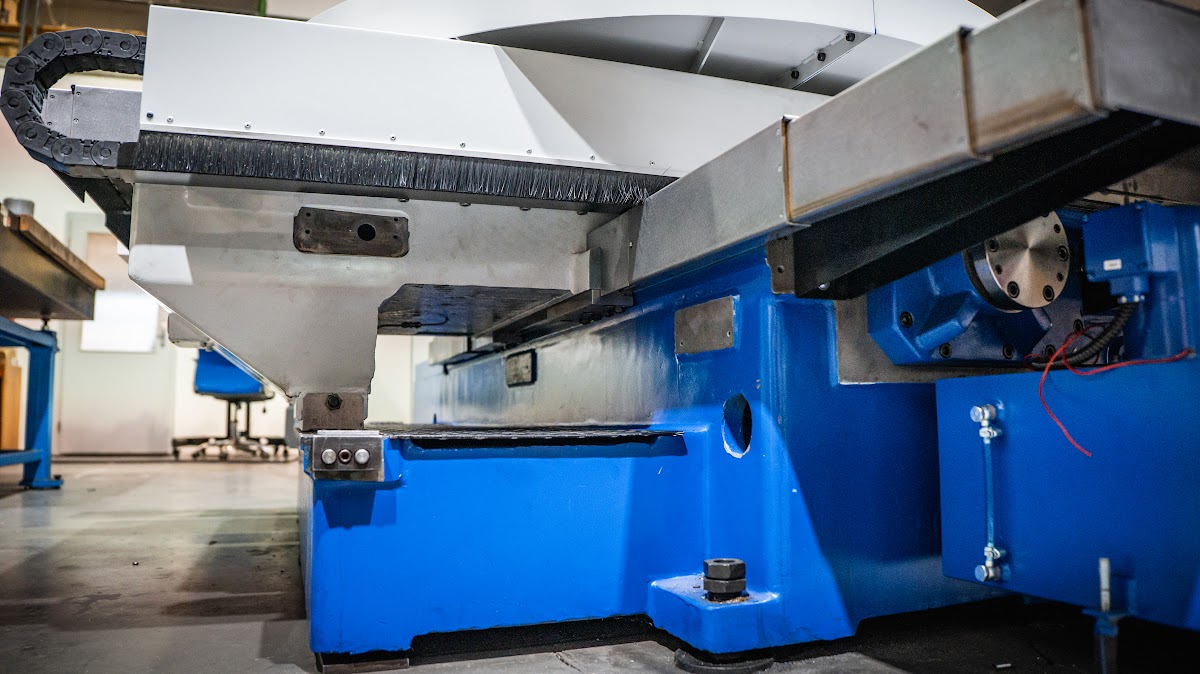

X/Z cover: telescopic

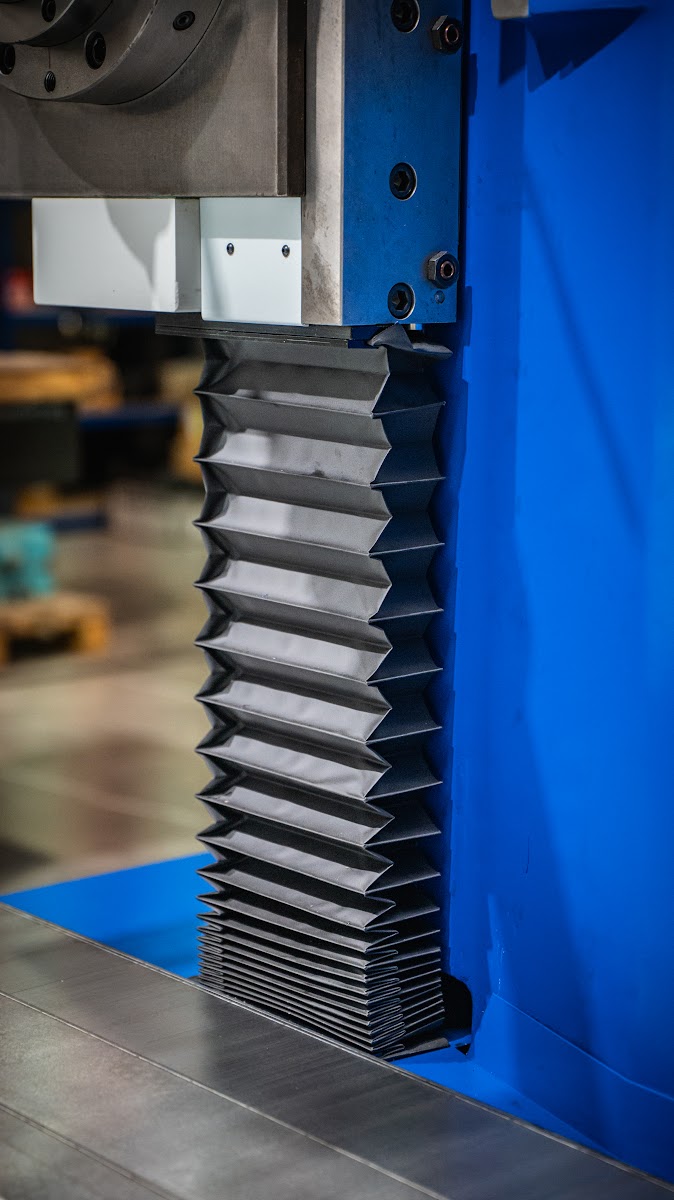

covering Y: bellows

work air pressure: 6 bar

positioning accuracy: <0.02mm

Color: white / blue RAL5010

Warranty: 12 months

Documentation: passport, electrical, PLC, manual
