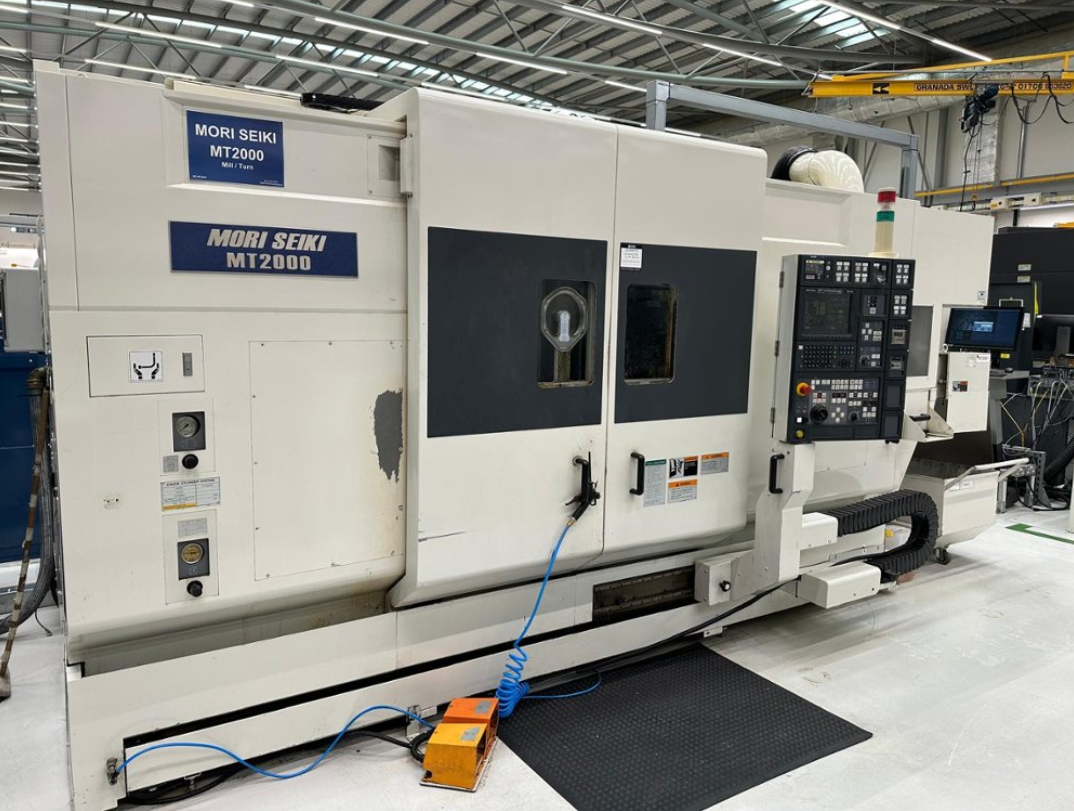

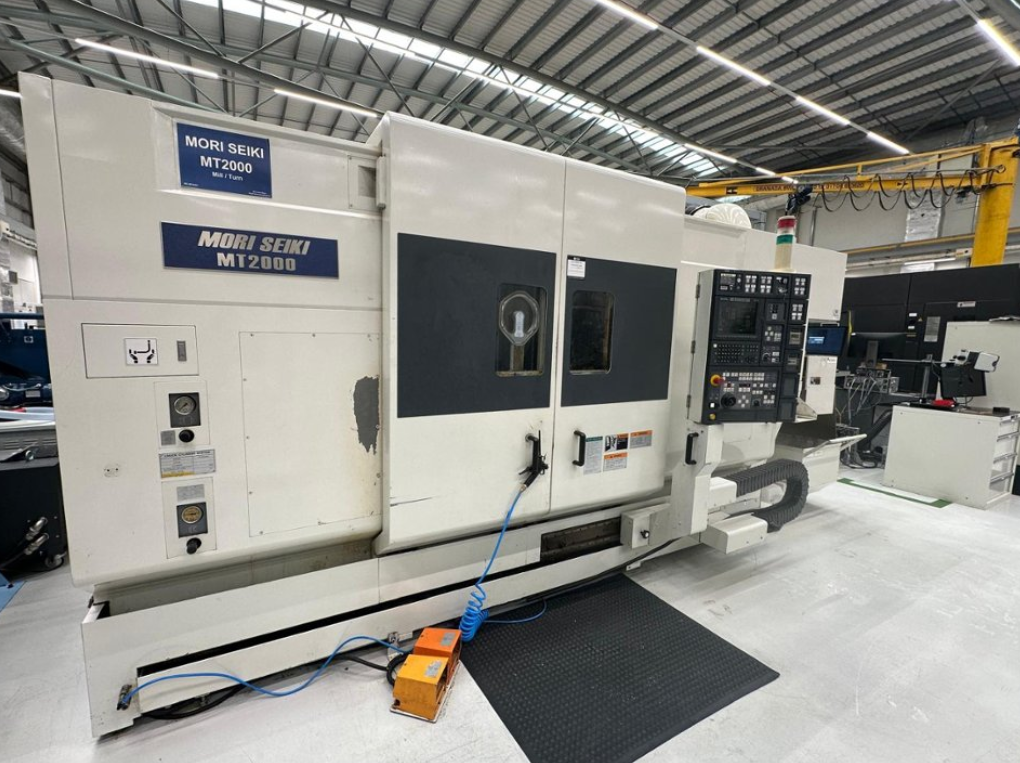

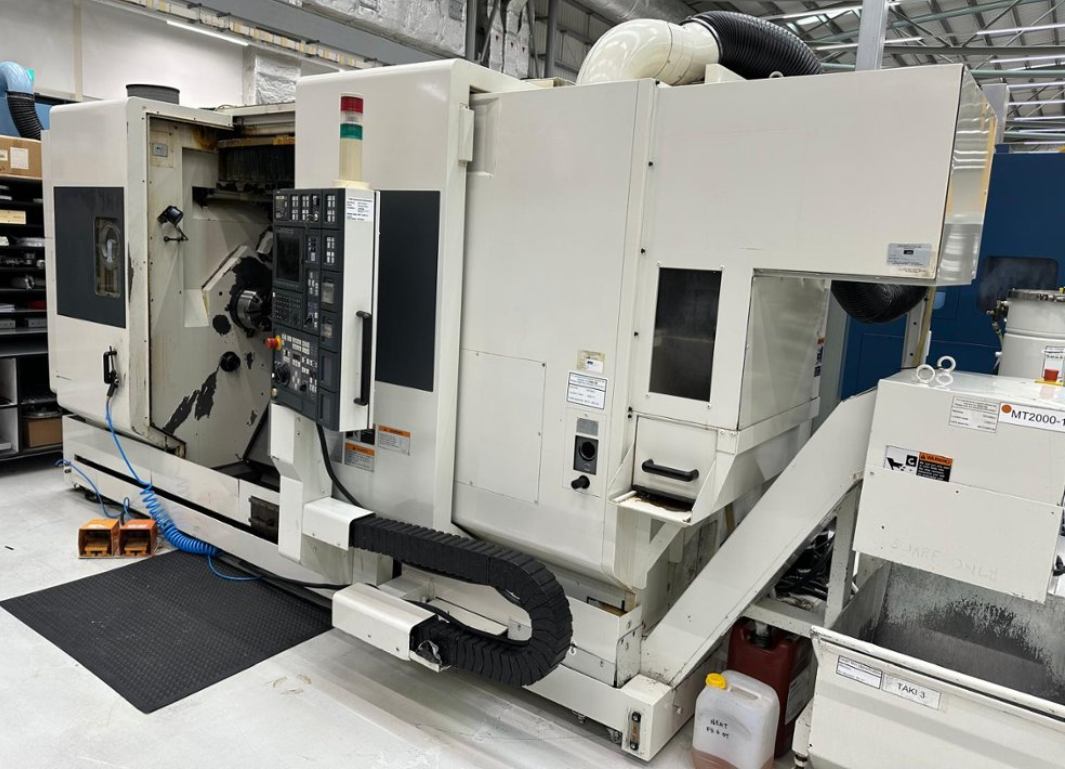

TURNING AND MILLING CENTRE MORI SEIKI MT 2000 Z

Prodamo stružnico CNC V TOP KONDICIJI.  STROJ JE BIL VZDRŽEVAN NA NAJVIŠJEM NIVOJU.

PRIHAJA IZ F1 SAUBER MERCEDES

STROJ BO IZ RAZVOJNE DELAVNICE F1 NA VOLJO V 1 POLOVICI JULIJA-2026

TEHNIČNI PODATKI

Swing over bed - 700mm,

Distance between centres - 1080mm,

Max turning dia meter - 550mm,

Max turning length - 1020mm,

Bar capacity - 65mm,

X Travel - 565mm,

Y Travel - +/-80mm,

Z Travel - 1077mm,

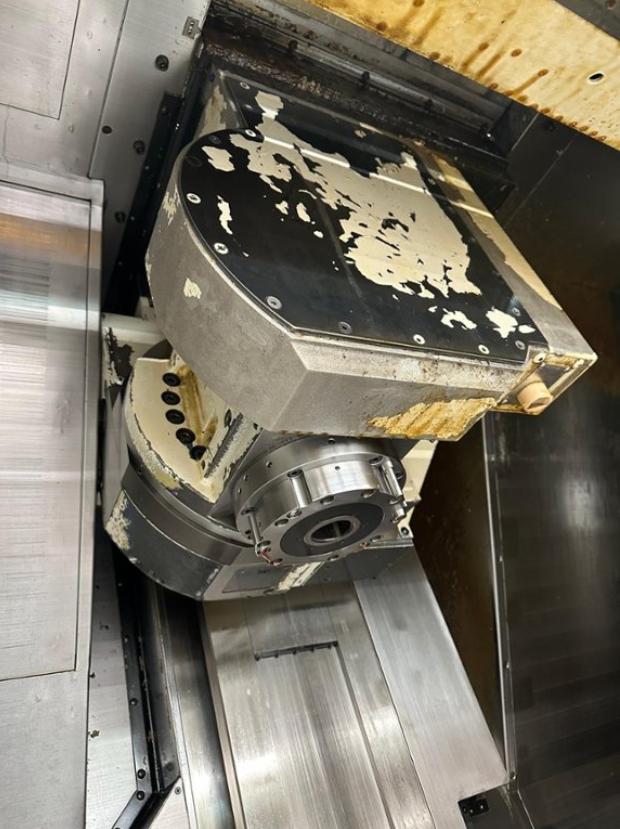

B Indexing - +/-120deg,

X Travel Turret 2 - 155mm,

Z Travel Turret 2 - 1067mm,

Spindle Speed - 4500rpm,

Spindle nose - JIS A2-6,

Tool Spindle Speed - 6000rpm,

Tool Spindle type - Capto C6,

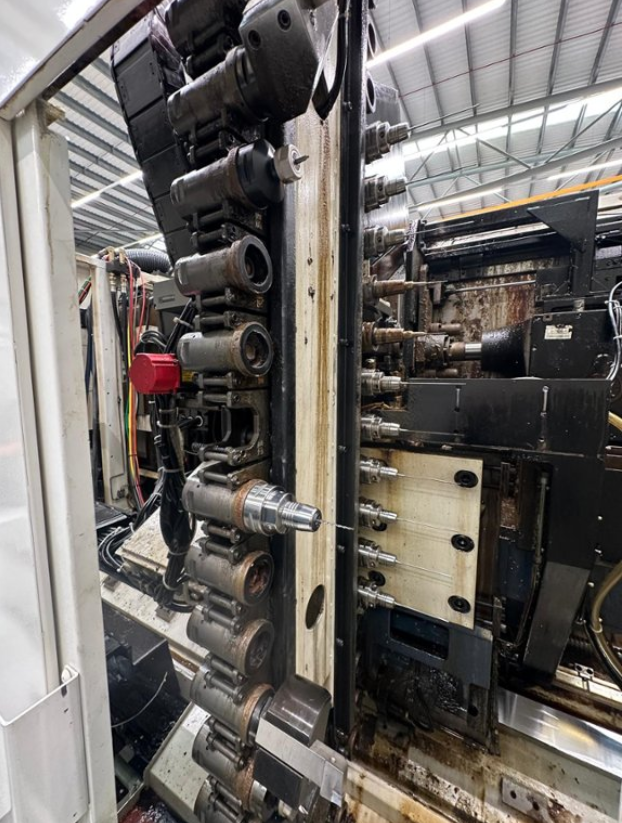

ATC - 40 Tools,

Max tool length - 280mm,

Max tool weight - 7kg,

Turret 2 Tools - 12,

Square shank - 25mm,

Boring bar shank diameter - 40mm,

Drive tool speed - 4000rpm,

Tailstock diameter - 110mm,

Tailstock spindle travel - 150mm,

Taper of Tailstock - MT5
